winIDEA HelpTasks

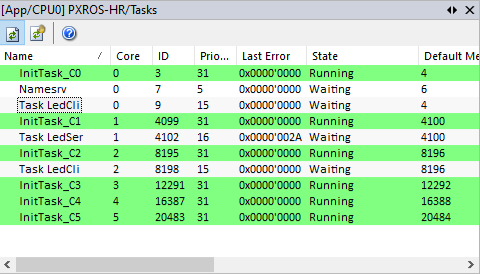

The Tasks window shows details about task objects.
 The currently running tasks are colored green. |
For each task, the following information is shown:
Column name |
Description |
|---|---|
Name |
The name of the task. |
Core |
The CPU core to which this task is assigned. |
ID |
The ID of the task object. |
Priority |
The task's priority. |
Last Error |
The last error code associated with this task. |
State |
The current state of the task. |
Default Memory Class ID |
The ID of the task's default memory class object. |
Default Object Pool ID |
The ID of the task's default object pool object. |
Private Mailbox ID |
The ID of the task's private mailbox object. |
Access Rights |
The access rights given to this task, with the PXACCESS_ prefix omitted. For example, "HANDLERS | MODEBITS" means that the task has the PXACCESS_HANDLERS and PXACCESS_MODEBITS access rights. |
Mode |
The task's enabled mode bits, with the PXTmode prefix omitted. For example, "Suspended | SVCMode" means that the PXTmodeSuspended and PXTmodeSVCMode bits are enabled. |
