iC5000 The Universal On-Chip Analyzer	iC5000 brochure
	On-Chip Debug Features JTAG / SWD / BDM Debug Interface (Debug Levels 1.8 ...5V) Multicore Support Maximum CPU Frequency  supported Non intrusive Unlimited Software Breakpoints in RAM or Flash On-Chip Hardware Breakpoints High and Low Level Debugging High-Speed Flash Programming
Trace Features 256MB Trace Memory  10 ns time stamp  Endless Trace / Profiling / Coverage with `Upload while sampling` Code Coverage with Statement and Decision Analysis 8 trace data channels	On-Chip Trace Features ARM   · Program / Data Trace (ETM)   · Data Watchpoint Trace (DWT)   · Instrumentation Trace (ITM)   · AHB Trace (HTM) Power Architecture   · Nexus Coldfire V2/3/4   · BDM / Trace  S12(X)/S08/Coldfire V1   · BDM (On-Chip Trace Buffer)  TriCore/XC2000   · JTAG/DAP (On-Chip Trace Buffer)

iSYSTEM offers the iC5000, a powerful, yet affordable tool solution for embedded software debugging based on industry-standard JTAG or BDM based communication with the target application.  The iC5000 is a universal multi-functional development and test tool, supporting a wide range of microcontrollers by means of simple cable adaptation and software license (IP).
Debug and trace licenses are available for many different microcontroller families. Check the iSYSTEM web site for the latest list of supported architectures  and technologies.

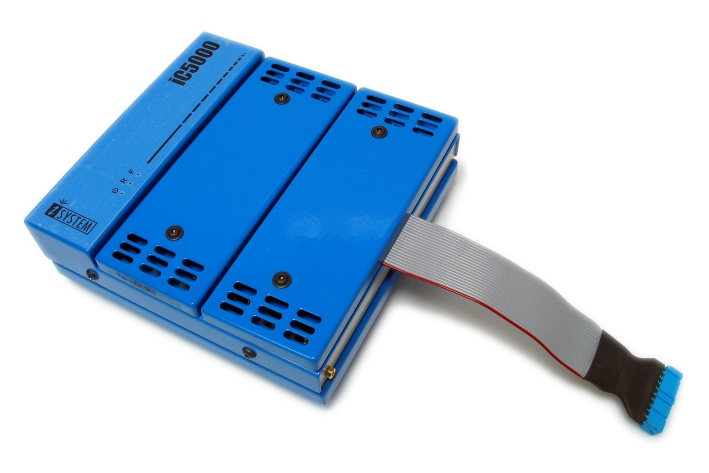

The iC5000 consists of a base module including USB2.0 and ETH100 interface to connect to the host PC. On top of the base module the debug/trace module and an optional I/O module are attached.
The development system supports real-time access, program trace and data trace. The iC5000 is driven by winIDEA, an easy-to-use integrated development environment and debugger. The iC5000 incorporates major innovation in a new compact package. For devices which include on-chip trace functionality, the iC5000 also accesses these functions and winIDEA displays and interprets the appropriate results.
In addition to providing complete, high-performance development, debugging and test features, the iC5000 additionally offers high-speed flash programming.
The winIDEA software operates under all popular versions of Windows, including Windows 7. It integrates seamlessly with a large variety of C/C++ compilers.  Interfaces to CASE and Test tools as well as  Real-Time-Operating-Systems are also available.

The additional I/O module is an optional add-on which provides:

• monitoring and tracing of auxiliary digital and analog signals
• generation of digital and analog stimulus
• system port for multiple emulator synchronization
• attachement of external measurement tools (oscilloscopes, analyzers)

Supported MCU families:
