Diagrams

This section contains configurations for diagrams, which can be created based on information produced during test case execution, or other sources. Term diagram in this text means all types of graphical information, including graphs, charts, ...

Requirement: For sequence diagrams module seqdiag has to be installed in Python used by winIDEA. It is already present in winIDEA's internal Python, so if you have selected in winIDEA Tools | Options | Script | Internal Python x.y, then there should be no problems. If you have selected one of the other two options in this dialog to use your installation of Python, then you have to install the module seqdiag yourself. See https://pypi.python.org/pypi/seqdiag/ for installation.

Columns in the diagram configuration table have the following meaning:

isActive - if checked, and complete section is enabled with check-box Is active, the diagram will be created during test execution. After test execution you can always create a diagram with button Create, regardless of this setting.
diagramType - this column contains one of built-in diagram types or defines a custom diagram type. In the later case the script name should be specified in the next column.
There exist two types of custom diagrams - the normal custom type and type custom-async. As the name already implies, the later type of scripts is executed asynchronously, which means that testIDEA does not wait for results. This type of diagrams can be used when the script itself displays the diagram, and we prefer viewing it in new windows. These diagrams can not be included in reports.
script - for custom diagrams this column specifies name of Python script to be executed to draw a diagram. It is ignored for built-in diagrams.
params - this column specifies script parameters, if they are required. For built-in diagrams this column should be empty.
outFile - this column specifies name of the file, which will contain the diagram. It is mandatory, and may contain host variables ${_testId}, ${_function}, and ${_diagramType}. If file name is relative (recommended), diagrams are saved relative to test report directory. It is highly recommended to specify test report file with command Test | Configure Test Report before running tests. For built-in diagrams the value of '_diagramType' is the name of built-in type, for custom diagrams, it is string 'custom'. If two lines have the same output file name, warning is written in Status view.
isAddToReport - if checked, the link to diagram file is included in test report, when saved. Diagrams of type custom-async can not be added to test report. Diagram files are part of test report, so they must not be deleted to be shown in report.
viewer - for quick preview, diagrams are shown in the bottom pane of the Diagrams test case section. For better view, we can open them as documents, either as one diagram per tab (singlePage) , or as one tab in multi-page document (multiPage). externalApp opens diagram image in an external application.
dataFormat - testIDEA can show diagrams saved to bitmap file formats (png is recommended) and vector format (only svg is supported). The recommended value for this column is byExtension and specified extension png or svg in output file. Both formats are supported by matplotlib and graphwiz, and can be shown by web browsers in test report. Other formats may not be shown in web browser.
externalViewer - if output format is not supported by testIDEA, or for some other reason we want to see a diagram in external application, we can specify its name here. If externalApp is selected in column viewer, then Button Show will open the output file with this application. If externalApp is selected, but this field is empty, then default system viewer for the given output file extension will be used.

Tips:

To generate diagram during test case execution, check-box Is active and table column isActive must both be checked. Button Create generates a diagram regardless of these two settings.
If a diagram is produced by script extension or stub/test-point script during test case execution, then add new line to table, set diagram type to custom, leave script column empty, and specify file name.
If one script produces more than one file, add new line to table, set diagram type to custom, leave script column empty, and specify file name. This way it is also possible to show the same file in multiple viewers, for example internal testIDEA viewer and external viewer.
When opening diagrams in multi-page editor, text on tab on the bottom of the page is taken from file name as text before extension, and after the last '-', for example: test-0-myFunc-callGraph.png ==> callGraph. To get full file name as tab name, replace all '-' in file name with some other character, for example underscore.

Built-in diagrams

testIDEA contains the following types of built-in diagrams:

Flow chart
This chart is created from static object code analysis. Test does not need to be run to get information for this diagram, but the code has to be downloaded to the target.

Call graph
This diagram shows which function has called which function, and how many times this call has been executed. It shows runtime information, which is obtained from profiler recording. Profiler has to be properly configured for this diagram (see button Auto-configure profiler) and the test executed.

Static call graph
This diagram shows function call hierarchy. It shows static information obtained from download file, so the test does not need to be run to create this graph.

Parameters:
-t : By default functions called form the function under test are shown. If we specify this parameter, then functions which call function under test are shown.
-d <n> : By default complete hierarchy is shown. By specifying depth value, we can limit call depth shown.

Sequence diagram
This diagram shows UML sequence diagram - function calls in the same sequence as they occurred.

Flame graph
This graph shows time spent in each call stack. The detailed description is available at CPU Flame Graphs, except that testIDEA shows execution time, not execution count.

Summary adapted for testIDEA flame graphs:

Each box represents a function in the stack (a "stack frame").
The y-axis shows stack depth (number of frames on the stack). The top box shows the running function. Boxes below show functions, which called the function above them.
The x-axis does not show the passing of time from left to right. The left to right ordering has no meaning (it's sorted alphabetically).
The width of the box shows the total execution time for sequence of stack frames at and above the box.
The same function may appear more than once in the graph, if it is called from different functions.
Precision of execution times depends on On-Chip trace module. Typically it is low for short functions.

Example:
Suppose we have the following code:

      g() {}

      h() {}

      a() {
          g();
      }

      b() {
          g();
          h();
          g();
      }

      f() {
          b();
          b();
          a();
      }

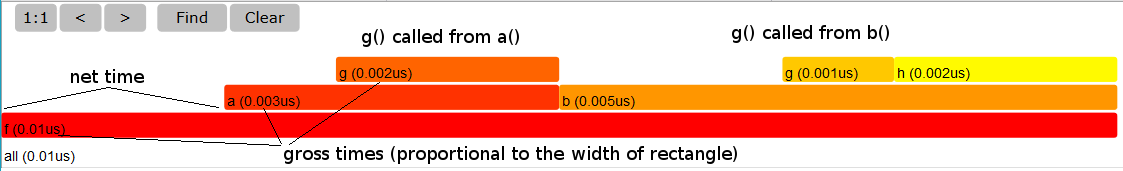

Flame graph with added explanations is shown below. It can be seen that two calls of b() and four calls of g() are merged together. Call stacks are shown in alphabetical order, not execution order.

Script parameters
See tool-tip in table in section Diagrams for most useful parameters. To see all possible parameters and their values, run the script from command line:

        python /Lib/site-packages/isystem/flameGraph.py -h

Note that title, profiler export, and output file name are already specified by testIDEA.

Interactivity
Flame graphs are interactive, which means clicking a function box performs zoom. Unfortunately testIDEA SVG viewer does not support these features, so it is recommended to open it in javascript capable SVG viewer, for example Firefox or Chrome web browser (IE and Edge do not support all functionality). In table with diagrams select externalApp in column viewer, and enter path to your browser in column externalViewer:

Directories

Files in testIDEA (analyzer output and export files, scripts, reports, images, ...) can be specified with relative or absolute paths. When relative paths are specified, the so called working directory (this is directory where relative path starts) depends on file type:

Analyzer files are saved relative to winIDEA workspace directory, because they are created by winIDEA.
Scripts created by testIDEA are also saved relative to winIDEA workspace directory, so that they have access to analyzer output files.
Test report is saved relative to iyaml file directory.
Diagram images are created in directory relative to report file directory, so report file should be specified before test run, if it is going to be located in directory other than iyaml file.

Scripts for diagrams

testIDEA already contains Python scripts for built-in diagrams. On request for drawing a diagram, the script is saved to winIDEA workspace directory.
Script files for built-in scripts always start with prefix _isys_, for example _isys_flowChart.py. Never modify these scripts, as they will be overwritten by testIDEA. Always rename them, and use them as custom scripts if you want to customize them.

Custom scripts

How to write custom scripts

To write custom scripts it is highly recommended to generate template script with button GW template or MP template. The first button generates a template script which uses graphwiz utility, the second one uses matplotlib. As comments in generated scripts suggest, use provided function for command line argument parsing. If arguments will change in future versions of testIDEA, it will not be necessary to update all custom scripts.

Description of custom script parameters

Several optional parameters and one positional are provided to custom scripts. Optional parameters are available only if the item is specified in test case.

args.dotDir - directory with graphwiz tools bundled with winIDEA.
args.testID - test ID of the executed test case
args.functionName - name of function under test
args.cvrgExport - name of coverage export file
args.profExport - name of profiler export file
args.traceExport - name of trace export file
args.analyzerDoc - name of analyzer document (trd file)
args.outFileName - name of image file. This parameter is always present, and is always the last item specified in command line, even if user arguments are provided.

In order to run scripts for diagrams from testIDEA and Python test script, scripts for diagrams should use the following rules:

It should import _isys_diagutils. This module is created by testIDEA, when you create a template. Never modify this module, because it is repeatedly overwritten by testIDEA when you create template scripts!

It must define function main(args), and call it with command line arguments, as shown below:

        import sys
        import _isys_diagutils

        def main(cmdLineArgs):

            args = _isys_diagutils.parseArgs(cmdLineArgs, None)

            < ... your code ... >


        if __name__ == '__main__':
            main(sys.argv[1:])

See documentation in source code of template scripts for more information.

Test case with diagrams should be started at least once from testIDEA, so that built-in scripts are copied from testIDEA resources to winIDEA working directory.

Script return values

The script should return 0, if it created diagram image successfully, any other number otherwise. It is a good practice to throw an exception with informative error message in case of failure, so that user gets more information about the problem. Throwing an exception in Python automatically returns non-zero value.
