CAN cable DB9
|

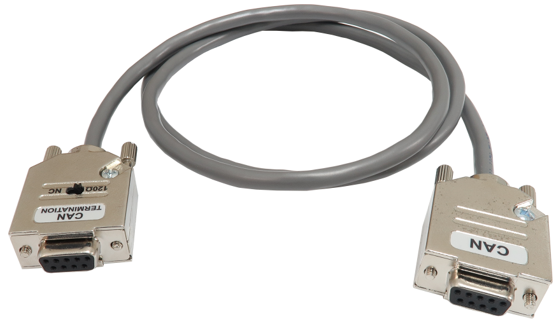

The IC57040-CAN-DB9 is used to connect the CAN/LIN to an existing CAN network through the DB9 connector. 120 Ohm termination is selected with the switch located on one of the DB9 connectors. The cable length is 1m.
|
The DB9 connector with the termination switch must be connected to the CAN/LIN Accessory (CAN1 or CAN2). |
The pinout of the target side DB9 connector is as follows:
DB9 pin |
Signal |
|---|---|
1 |
NC |
2 |
CAN_L |
3 |
CAN_GND |
4 |
NC |
5 |
SHIELD |
6 |
NC |
7 |
CAN_H |
8 |
NC |
9 |
NC |
SHIELD |
GND |
