9.17.125
Hotfix build release date: 21 August 2019
Full winIDEA version: 9.17.125.0.93429
Software
Output windows

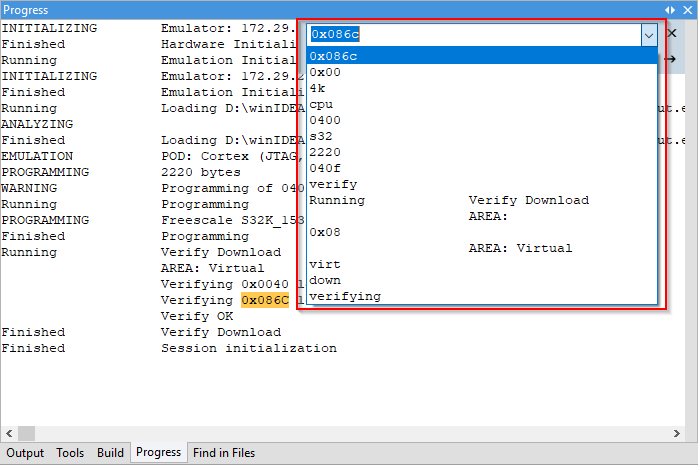

In Find Window of Output windows edit field for searh history is replaced with combo box. Maximum search 20 items.
Memory Regions

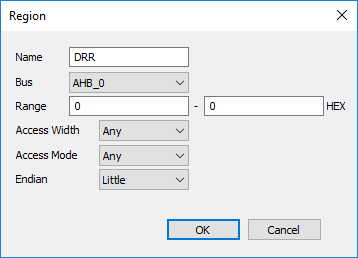

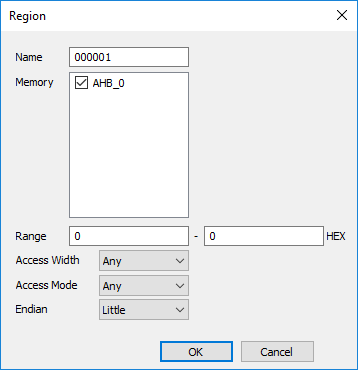

1. In Debug / Options / Memory Regions / Edit / Areas is now a single Bus selection. Region restrictions are now bus-based (and not core memory space based).
Before |
Now |
|
|
2. Debug / Memory Regions change.
Before:If a region is enabled, its restrictions take effect. If a region is disabled, its restrictions are ignored.
Now: If a region is enabled, its restrictions take effect. if a region is disabled, its restrictions are set to no access.
CPU support
Cortex
1. winIDEA: Removed OMAP and Sitara support from winIDEA.
2. NXP iMX7D: Cross Trigger Interfaces declared in JSON.
3. LPC43xx: SWO can no longer be selected as trace port.

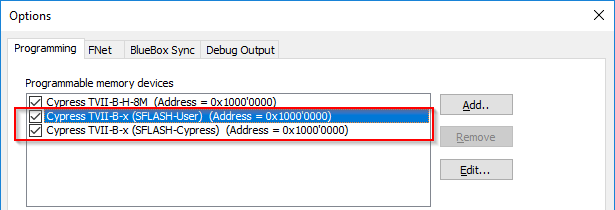

4. Cortex-M Traveo II: Added programming Supervisory Flash (SFLASH) f or User rows and Cypress rows.
Enable SFLASH:
1. Select Hardware menu / Options / Programming tab.
2. Select the programmable memory devices.
MPC5xxx
Added new CPU SPC58VQ810582.
