9.17.168
Hotfix build release date: 26 August 2020
Full winIDEA version: 9.17.168.0.108388
IDE

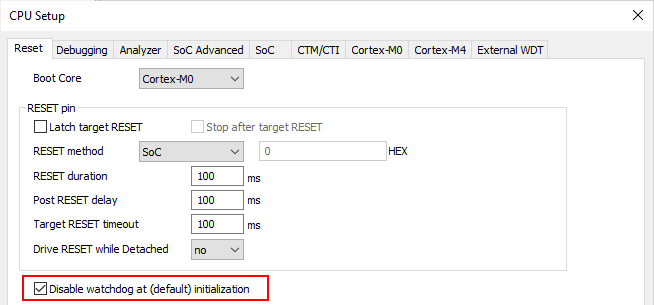

1. Internal watchdog check box added to Hardware menu / CPU Options / Reset tab. Supported on devices where watchdog is enabled by device. In the opposite case it is greyed out.

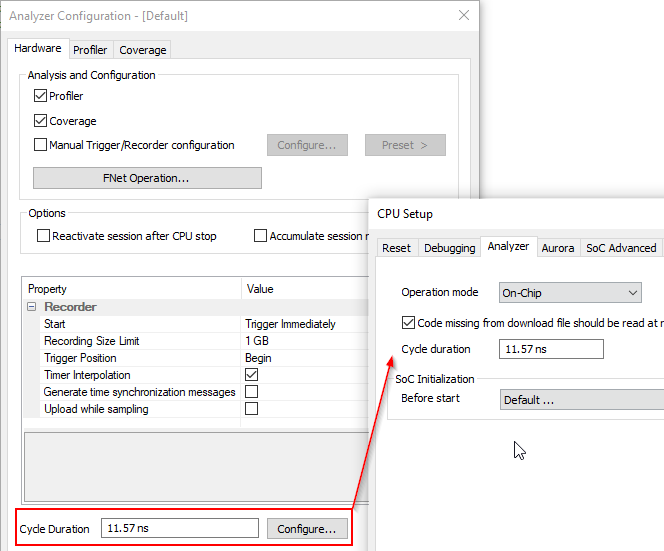

2. Cycle duration added to Analyzer Configuration dialog. By clicking the Configure button CPU Setup / Analyzer tab options open.
ARM Cortex
1. NXP LS1021A - Added support for QSPI reprogramming (RCW headers should be configured before QSPI programming)
2. Cypress PSoC4 HV PA (CY8C41xxLCE-HV) device family - Added support for:
•Debug: SWD
•Debug: M0+
•SFR
•UMI: Internal
•Trace: MTB
Infineon TriCore
TC3Ex device family - Added support for derivates: TC3E7QG, TC3E7QX, TC3E7QC, TC3E7QF. Supported features:
•Debug: JTAG
•Debug: DAP
•Debug: TC1.6.2P
•Debug: HSM
•Debug: multicore (core sync)
•SFR
•UMI: Internal PFLASH
•UMI: Internal DFLASH
•UMI: Internal UCB
•Trace: miniMCDS
NXP/ST Power Architecture
ST SPC58VQ8499 (Chorus 6M cut 2.x) derivate - Added support
