9.17.172.0.109652 (25.09.2020)
Verified build release notes
Supported IDE features and graphics
View menu
View menu items grouped into functional categories.
•Debug: Callstack, Core Registers, Disassembly, Locals, Memory, SFRs, Symbols, Symbols Browser, Tasks, This, Watches
•Project: Build, Project
•Workspace: Find in Files, Output, Progress, Script, Terminal, Tools
Cortex-M MPU Plugin
Plugin is used to view the number of Cortex-M MPU regions, with the location address, size, access permissions, and memory attributes of each region. Cortex-M MPU is supported for following architectures: ARMv6-M, ARMv7-M, ARMv8-M
Internal watchdog
Check box added to Hardware menu / CPU Options / Reset tab. Supported on devices where watchdog is enabled by device. In the opposite case it is grayed out.
Folder view
Gives a quick access to files in the workspace folder and any external folders. Open via View menu / Workspace / Folders.
Newly supported devices
ARM Cortex
•Dialog Semiconductor - DA14691/5/7 variants
•ST STM32H742 - Added support for variants STM32H742AG, STM32H742AI, STM32H742BG, STM32H742BI, STM32H742IG, STM32H742II, STM32H742VG, STM32H742VI, STM32H742XG, STM32H742XI, STM32H742ZG, STM32H742ZI
•i.MX 8X family - Added i.MX 8DX derivative
•TI AWR1843 - Added support
•NXP LS1021A
•Cypress PSoC4 HV PA (CY8C41xxLCE-HV) device family
•AWR1843 - Added support
Infineon TriCore
•TC3Ex device family - Added support for derivates: TC3E7QG, TC3E7QX, TC3E7QC, TC3E7QF
NXP/ST Power Architecture
•ST SPC58VQ8499 (Chorus 6M cut 2.x) derivate - Added support
•S32R264 - Added support
Known issues
Refer to this document for more information.
Other regular updates and features
NXP/ST Power Architecture
Disable the Watchdog option added to MPC5xxx (Pictus, Bolero) in Hardware menu / CPU Options / Reset tab.
IDE
1. Analyzer - DWT Exception trace - Added support for Cortex-M devices
2. Initialization sequence: Option Initialization before Debug session is now always used with Reset in Hardware menu / CPU Options / Reset tab / Initialization section.

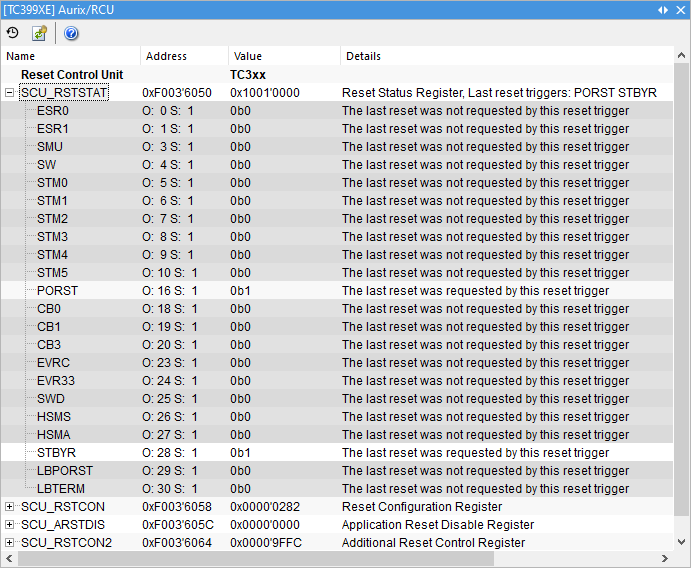

3. Aurix plugin - Renewed with additional view - RCU (Reset Control Unit). The plugin has now four views (MCX, Clocks, UCB and RCU), which can be loaded by selecting View / <core>.Aurix:
