Release Notes

Verified build release notes





Supported IDE features and graphics

winIDEA Workspace Templates and Backup Workspace removed

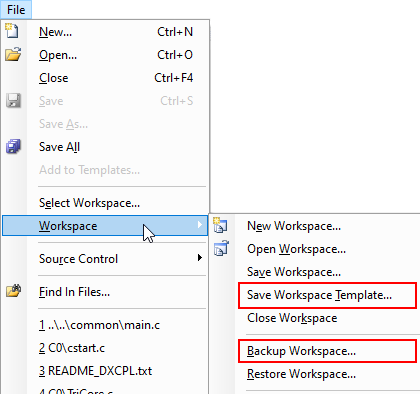

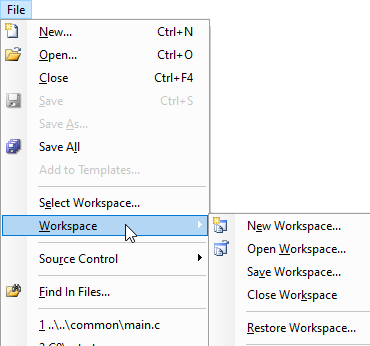

The following options were removed:

•File menu / Workspace / Save Workspace Template

•File menu / Workspace / Backup Workspace

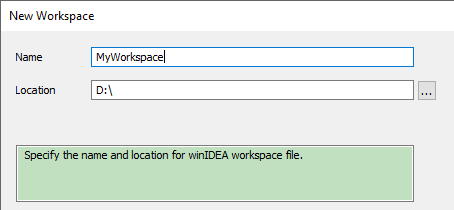

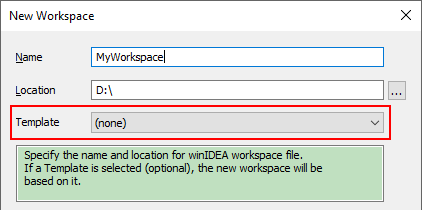

•The Template selection from File menu / Workspace / New Workspace dialog.







Newly supported devices

ARM Cortex

NVIDIA Orin - Removed support for:

•Trace: R52 STM ETR, R52 ETM ETR, CHSM (R5) STM ETR, CHSM (R5) ETM ETR



NXP

S32K396 - Added support for:

•Debug: JTAG, SWD, 1x CM7 and 2x CM7 (in lockstep), multicore (core run/stop sync)

•SFR

•UMI: Code FLASH, Data FLASH

•Trace: ETM Parallel, ETM SWO, HTM SWO, ETM ETF, ITM SWO, DWT ITM SWO, ITM ETF, DWT ITM ETF, HTM ETF



Supported devices: S32K396, S32K396LS



S32Z27 - Added support for:

•Debug: 8 x R52 (R52 boot core), 4 x Dual R52 in Lockstep (R52 boot core)

•Trace: R52 ETM HSSTP, R52 ETM SWO, System Manager (M33) ETM HSSTP, System Manager (M33) ETM ETF, System Manager (M33) DWT ITM HSSTP, System Manager (M33) ITM HSSTP, System Manager (M33) ITM ERF, System Manager (M33) ITM ERF, FlexLLCE (M33) ETM HSSTP, FlexLLCE (M33) ETM ETF, FlexLLCE (M33) DWT ITM HSSTP, FlexLLCE (M33) ITM HSSTP, FlexLLCE (M33) ITM ERF



i.MX RT117x - Added support for:

Debug: JTAG, SWD, M7, M4, multicore (M4)

SFRs

UMI: external SPI



S32K3x8 - Added support for:

•Debug: JTAG, SWD, 3x CM7, 1x CM7 LS + 1x CM7, multicore (core run/stop sync)

•SFR

•UMI: Code FLASH, Data FLASH



Supported devices: S32K338, S32K358



Texas Instruments

CC2340 - Added support for:

•Debug: SWD, M0

•SFRs

•UMI: Internal



Supported devices: CC2340R5, CC2340R2



Zhixin Semi

Z20K11xM - Added support for:

•Debug: SWD, CM0+

•SFR

•UMI: FLASH



Supported devices: Z20K116M, Z20K118M





Known issues

Refer to this document for more information.
