9.21.14.0.119641 (24.05.2021)
Verified build release notes
Supported IDE features and graphics
Recreate database
Reset the SFR database to the original state. Use this option if your database was corrupted.
Find in Watches, This and Locals windows
Use CTRL+F and search through items in the Watch, This and Locals windows via a pop-up
Newly supported devices
ST Microelectronics
•STM32L4P5xE •STM32L4P5xG •STM32L4Q5xG •STM32L4R7xI |
•STM32L4S7xI •STM32L4R9xI •STM32L4R9xG •STM32L4S9xI |
Cortex
Marvell 88Q5050 - Added support.
Deprecated products
•IW-IONE-BT100
•IW-IONE-BT101
•IW-PS-3V-AA
•IW-PS-3V-CR123
•IW-PS-3V-SCAP
•ITIC001
•IVTAG123
•IW-BRIDGE-BT1
Known issues
Refer to this document for more information.
Other regular updates and features

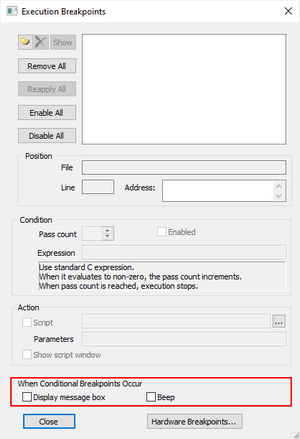

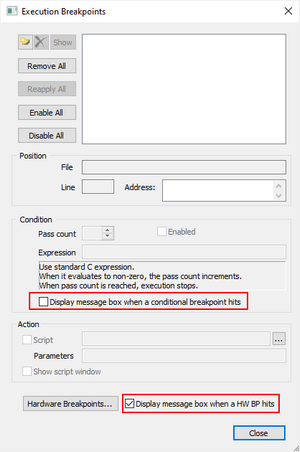

Hardware Breakpoint reporting
Display message box option is now configured in Debug / Breakpoints (Execution Breakpoints dialog).
Debug / Hardware Breakpoints / Action page - Deprecated.
Currently |
Previously |
|
|---|---|---|
 |
 |
 |
Prepare to Attach
Option moved to the Debug menu.
Currently |
Previously |
|---|---|
 |
 |

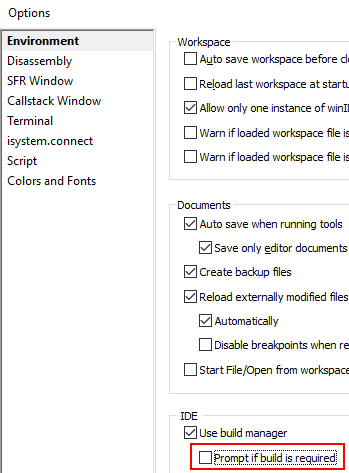

Prompt if build is required
Option to prompt for project build before download added to Tools menu / Options / Environment / IDE.
NXP
Cypress CY8C4200 (PSoC 4200) family supported:
•Debug: SWD, M0+
ST Microelectronics
ST SPC58VQ838352 (Chorus2M) (SPC584B70) - Added support.
