winIDEA Release Notes

Verified build release date: 27 October 2023

Full winIDEA version: 9.21.208.0.159550





Newly supported devices

ChinaCore

CCFC2016/7BC

•Debug: JTAG, C2007(compatible with e200z7)

•SFR

•UMI: CFLASH, DFLASH



Variants:

•CCFC2016BC

•CCFC2017BC



winIDEA version:  9.21.207.0.159089





Andes

AndesCore D25F core



winIDEA version: 9.21.206.0.158654





Infineon

CY8C4100S Max

•Debug: SWD, M0+

•SFR

•UMI: Internal



Variants:

•CY8C4147xxx-S5

•CY8C4148xxx-S5

•CY8C4149xxx-S5



winIDEA version: 9.21.201.0.157460





PSoC4 HV PA

Added support.



Variants:

•CY8C4126xxx-HV4

•CY8C4127xxx-HV4

•CY8C4147xxx-HV4

•CY8C4147xxx-HV4xxA



winIDEA version: 9.21.201.0.157724





ST

STM32U599/5A9

Adding support for:

•Debug: JTAG, SWD, M33, Peripheral Freeze

•SFR

•UMI: Internal, External SPI

•Trace: ETM Parallel, DWT ETM Parallel, DWT ITM Parallel, DWT ITM SWO,  ITM SWO



Variants:

•STM32U599xI

•STM32U599xJ

•STM32U5A9xJ



winIDEA version: 9.21.203.0.157987





Renesas

RA6M4

•Debug: JTAG, SWD, M33

•SFR

•UMI: Internal

•Trace: M33 ETM Parallel, M33 ETM SWO, M33 ETM ETB, M33 ITM Parallel, M33 ITM SWO, M33 ITM ETB



Variants:

•R7FA6M4xD

•R7FA6M4xF

•R7FA6M4xE



winIDEA version: 9.21.201.0.157717





Texas Instruments

TDA4VL/VE/AL

•Debug: JTAG, A72 (Main Domain), R5 (Main Domain), R5 (MCU Domain), multicore (core sync)

•UMI: external SPI

•SFRs



Variants:

•TDA4VL

•TDA4VE

•TDA4AL



winIDEA version: 9.21.201.0.157757





Thinktech

Alioth-A8

•Debug: JTAG, Peripheral Freeze, HSM (Cortex-M0), Cortex-M7, SWD

•UMI: QSPI, Internal

•SFR



winIDEA version: 9.21.205.0.158471





Trace: ETM Parallel, DWT ETM Parallel, DWT ITM Parallel, ETM ETB, DWT ETM ETB, DWT ITM ETB



winIDEA version: 9.21.208.0.159236





NXP

S32K388

•Debug: JTAG, SWD, 1x CM7 and 2x CM7 (in lockstep), multicore (core run/stop sync)

•SFR

•UMI: Code FLASH, Data FLASH

•Trace: M7 ETM SWO, M7 ITM SWO, M7 DWT ITM SWO, M7 HTM SWO, M7 ETM ETF, M7 ITM ETF, M7 DWT ITM ETF, M7 HTM ETF



Variant:

•S32K388LS



winIDEA version: 9.21.208.0.159445







Supported hardware

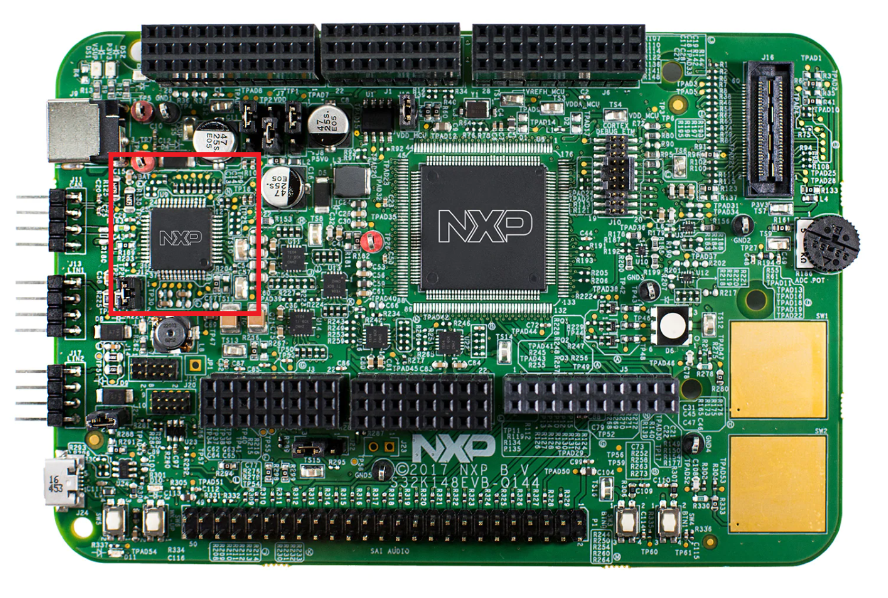

PEmicro 3rd party debugger

PEmicro provides powerful and easy-to-use tools for development, debug, and production programming of NXP devices. Supported On-board and Standalone version of PEmicro.





Supported debug protocol is SWD.



winIDEA version: 9.21.205.0.158471







Known issues

Refer to this document for more information.
