9.21.69.0.131670 (17.2.2022)
Verified build release notes
Supported IDE features and graphics
Infineon TriCore + Aurora trace + iC6000
This is the latest verified build for Infineon TriCore + Aurora trace + iC6000.
RAM Initialization

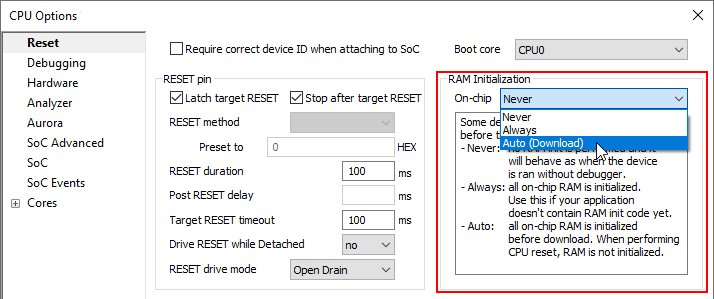

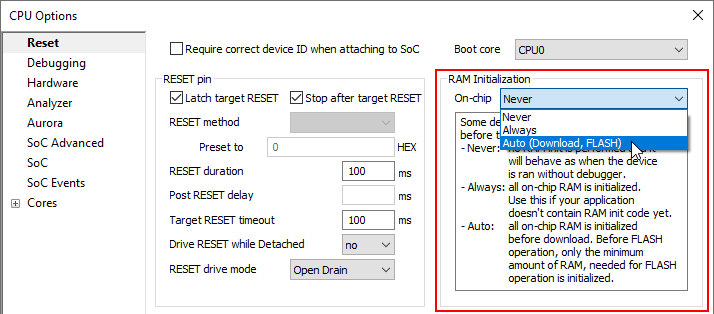

In Hardware menu / CPU Options / Reset / RAM Initialization, the Auto (Download) option and its description were changed to Auto (Download, FLASH).
Currently |
Previously |
 |
 |
Analyzer Configuration

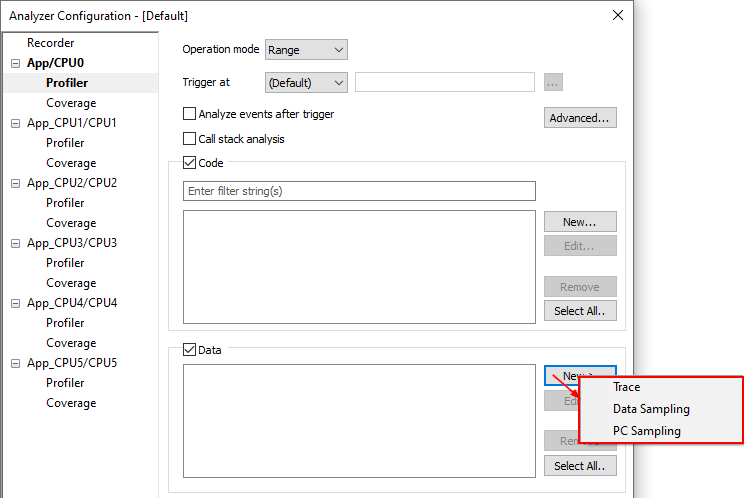

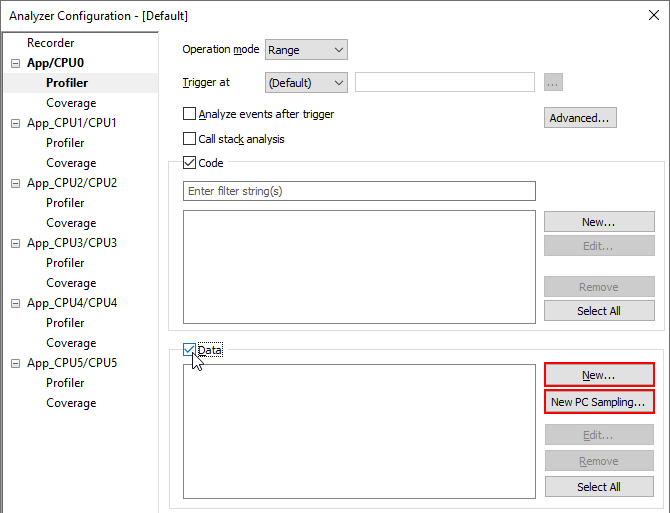

In the Analyzer Configuration / App/MCU / Profiler / Data a new button New PC Sampling was added, which creates data item directly.
Currently |
Previously |
 |
 |

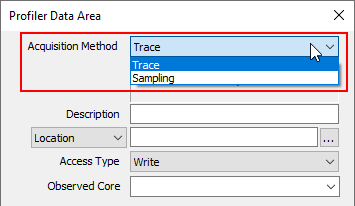

Selection of the data item type (Trace, Data Sampling) is now done in the Profiler Data Area / Acquisition Method.
Newly supported devices
RH850
P1M-E - R7F701586
AutoChips
AC7801x - Added support for:
•Debug: SWD, M0
•SFR
•UMI: Internal
Supported devices: AC7801xxA, AC7801xxB, AC7801xxC, AC7801xxD
Known issues
Refer to this document for more information.
