winIDEA HelpLIN1 / LIN2
This chapter describes how configure and provide network description for the Network analyzer CAN / LIN - LIN1 / LIN2 pages.
|
Network - Give the network a meaningful name.
Add - Add LIN description files (*.ldf).
Baudrate - LIN1 and LIN2 ports can be configured to record in any of the standard baudrates available in the drop down menu, or by entering a specific baudrate.
|

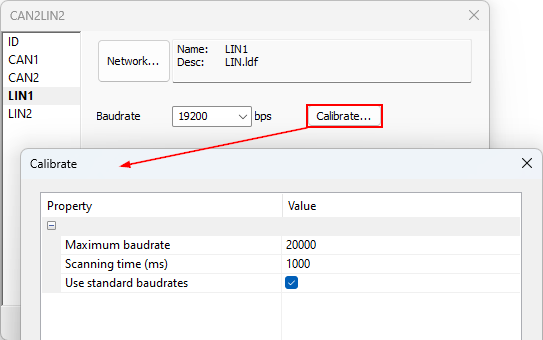

Baudrate calibration scans the LIN network and determines the baudrate from the messages on the network. To ensure a proper calibration, run the program that transmits LIN messages on a regular basis before doing the calibration. |
