The MQX MSG Queue List view displays detailed information about all available msg queue parameters.

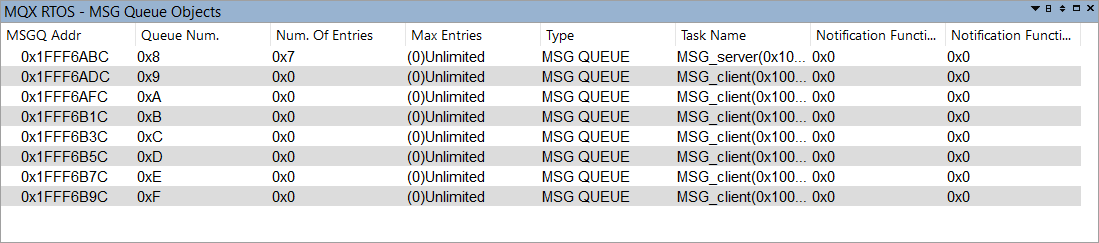

Image below depicts an example of msg queue snapshot. Each row with the same color, represents one msg queue with multiple parameters. Double click on the item will open new window with more detailed description.
 |
The functionality of each listed timer parameter is described inside the following table:
Parameter name |
Description |
|---|---|
MSGQ addr |
Pointer to the MSGQ structure |
Queue num |
Queue number. |
Num of entries |
The current number of messages on the queue. |
Max entries |
The maximum number of messages that can be placed on this queue. |
Type |
The type of this queue: MSG QUEUE or SYSTEM MSG QUEUE. |
Task name |
Owner task (task which OPENED) the queue. |
Notification function |
A function can be called asynchronously when a message is put onto the message queue. |
Notification function param |
Parameter passed to the notification function. |
