winIDEA HelpMSG
The MQX MSG List view displays detailed information about all available MSG parameters.

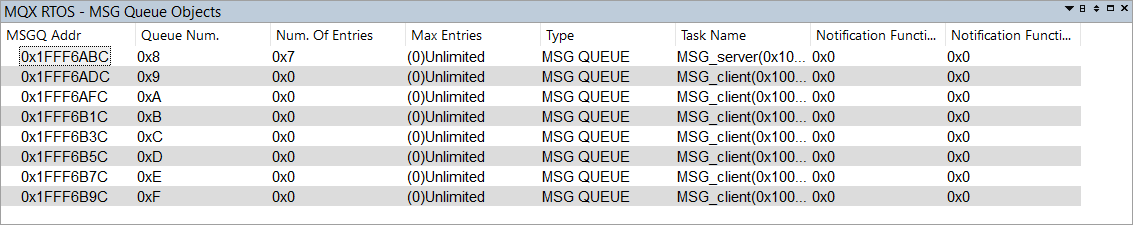

Image below depicts an example of MSG snapshot. Each row with the same color, represents one MSG with multiple parameters. This window will open on double click on item in MSG queue or MSG pool.
 |
The functionality of each listed timer parameter is described inside the following table:
Parameter name |
Description |
|---|---|
MSG addr |
Pointer to the internal message structure. |
Valid |
Is MSG component valid. |
Free |
Is this a free message. |
Queued |
Is this a queued message. |
Task name |
Task that owns this message. |
Message |
The actual message whose address is given to the application. |
