TC277 TFT Application Kit
This topic describes detailed CPU settings for the following hardware:
Target |
Supported CPUs |
Board User's Manual |
|---|---|---|
TC277 TFT Application Kit |
TC277T/T step Ax/TE/TE step Ax/TF/TP |
General Configuration
|
Create a New Workspace via File | Workspace | New Workspace and follow the wizard. |
|
Select your Target Board. |
Once your workspace is created, you can recall this dialog by clicking Hardware | Select target.

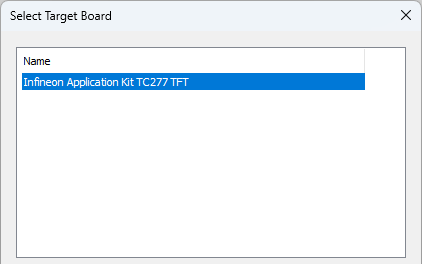

Example dialog
Additional TLF38854 configuration
Extra configuration is required to be able to debug with step A device.
|
Make sure the correct preset is selected. |
|
Turn off the Target Board power. |
|
Turn on the debugger. |
|
Reset the application. |
You should see CPU status SoC NO POWER in the lower right corner of winIDEA.
|
Turn on the Target Board power. |
You should see CPU status STOP in the lower right corner of winIDEA.
|
If your Target Board is not supported in winIDEA, please contact Technical support. |
