78K0 16-pin 2.54mm
|
Embedded targets based on Renesas 78K0 microcontroller can also feature a 16-pin 2.54mm target debug connector with the Renesas 78K0 pinout.

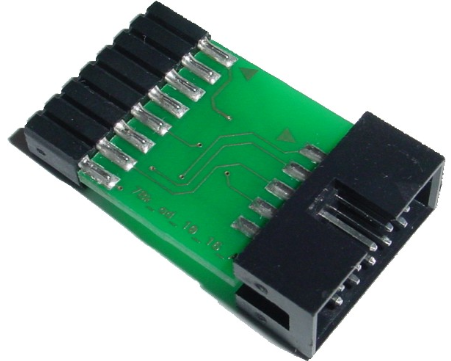

A converter connecting at the end of the 10-pin 2.54mm Renesas 78K0 Debug Adapter is available for Renesas 78K0 16-pin pinout and must be ordered separately. Toward the BlueBox the adapter features 10-pin 2.54 mm male connector featuring the 10-pin 78K0 pinout.
The following pinout is valid on the target side:
Signal direction |
Signal |
Pin |
Pin |
Signal |
Signal direction |
|---|---|---|---|---|---|
|
GND |
1 |
2 |
RESET OUT |
O |
|
NC |
3 |
4 |
TARVCC |
I |
|
NC |
5 |
6 |
NC |
|
|
NC |
7 |
8 |
NC |
|
O |
X1 |
9 |
10 |
NC |
|
|
NC |
11 |
12 |
NC |
|
I/O |
X2 |
13 |
14 |
FLMD0 |
O |
I |
RESET IN |
15 |
16 |
NC |
|
16-pin 78K0 target pinout
Signal Direction is described from the BlueBox perspective.
The adapter connects to the target via a 16-pin 2.54 mm connector, for example Yamaichi FAS-1601-2101-2-OBF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61201621621.
