Package content
iC5000 BlueBox On-Chip Analyzer is a hardware and software platform designed for debugging and testing a wide range of embedded microcontroller platforms that are based on a variety of processor architectures. Functionality can be further extended with the addition of the I/O Module, enabling the synchronous capture of analog and digital signals in parallel to trace information. Such capability is used for advanced debugging of complex applications together with our winIDEA Integrated Development Environment (IDE), as well as for thorough testing in conjunction with our testing environment testIDEA. Complementing the hardware is a range of software which target three key areas of embedded development: debugging, timing-analysis and testing.
The standard iC5000 order is delivered with the following components:

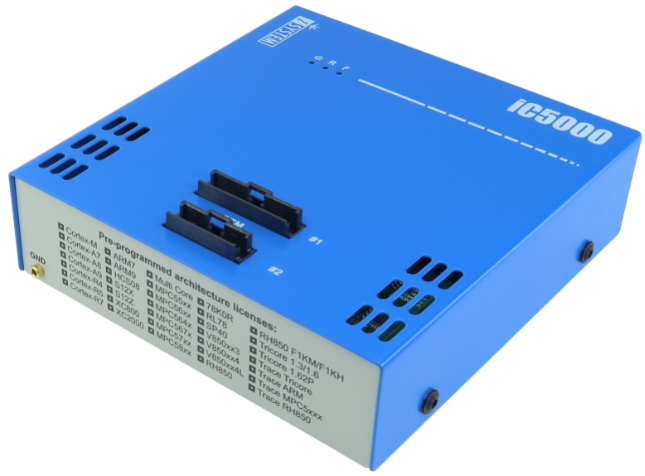

iC5000 Base Unit including pre-assembled DTM module |
25 cm 40-pin ribbon cable |
Power supply |
|---|---|---|
Ordering code: IC50000 + IC50020 |
Ordering code: IC50020-25 |
Ordering code: IC30000-PS |
|
|
|
USB 2.0 cable |
Ethernet cable |
Grounding wire |
|---|---|---|
Ordering code: BB-USB20-180 |
Ordering code: BB-ETHCAT5-200 |
Ordering code: BB-WIRE |
|
|
|
