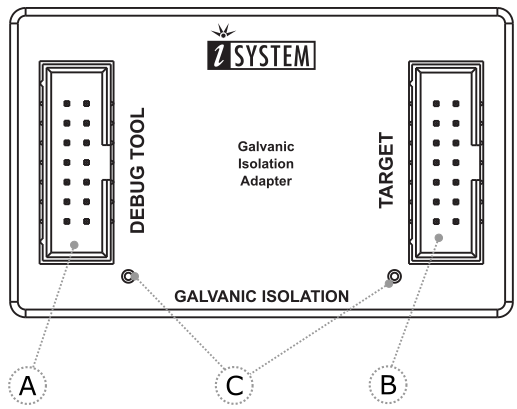

Device overview
|
|
A – DEBUG TOOL connector.
B – TARGET connector.
C – LED lights indicate power supply status.
|
If LEDs on the GI Adapter are OFF, immediately turn everything OFF! |

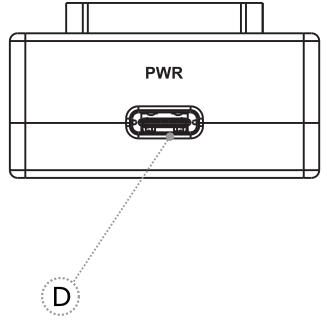

D – USB PD Power supply socket (PWR).
|
Use only original USB PD Power supply for powering and connecting with the GI Adapter, otherwise the primary functionality of the GI Adapter would be counteracted. |
Pinout
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
|---|---|---|---|---|---|---|---|
O |
JTAG |
TDI |
1 |
2 |
GND |
Ground |
|
I |
JTAG |
TDO |
3 |
4 |
GND |
Ground |
|
O |
JTAG |
TCK |
5 |
6 |
GND |
Ground |
|
O |
Nexus Event Input |
nEVTI(EVTI0) |
7 |
8 |
PORST |
Power On Reset |
I/O |
I/O |
Reset |
nRESET |
9 |
10 |
TMS |
JTAG |
O |
I |
Reference Voltage |
Vref |
11 |
12 |
GND |
Ground |
|
|
Not Connected |
NC |
13 |
14 |
JCOMP |
JTAG TRST (optional) |
O |
14-pin MPC5xxx & SPC5 target pinout
