Introduction Emulation Adapter V1.6

NXP S32K344 Emulation Adapter is based on the 257-pin S32K344 superset device and provides full trace capabilities for the:

48-pin

100-pin

172-pin

NXP S32K344 / 342 / 341 / 324 / 322 / 314 / 312 / 311 microcontroller, where the trace port is not available or lacks the full trace capability.



i-icon

The Emulation Adapter might differ in some peripherals from the target device; therefore, the device datasheet should be checked.



Emulation Adapter supports the following debug and trace interfaces:

JTAG or SWD debug interface;

HTM/ETM/ITM trace to trace Cortex-M7 program execution; Trace data is connected to the ARM CoreSight 20 and ARM Mictor 38‑pin connector provided on the Emulation Adapter;

ETF trace to trace Cortex-M7 program execution; Trace data is stored in up to 2 kB of dedicated RAM memory and read out through JTAG or SWD;

Serial wire viewer (SWV) and printf() style debugging through a Single Wire Output (SWO) “trace” pin on Cortex-M7.



The Emulation Adapter can also be used as a standalone device for microcontroller evaluation purposes or for development and testing of an embedded application ahead of target board availability.

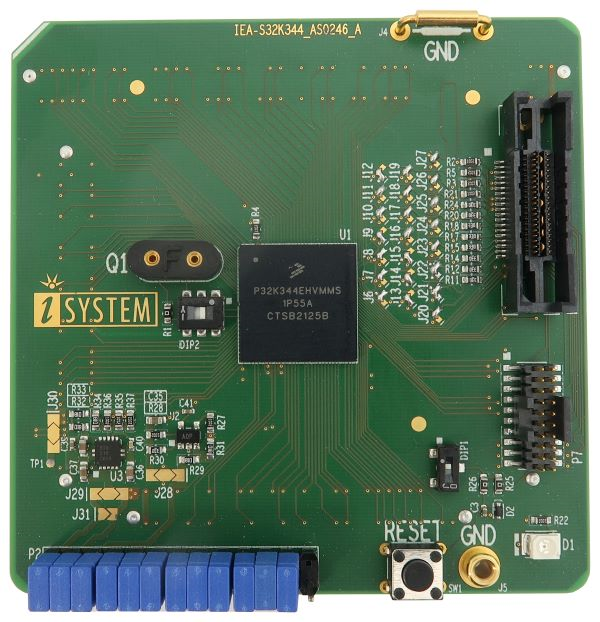

Click to enlarge

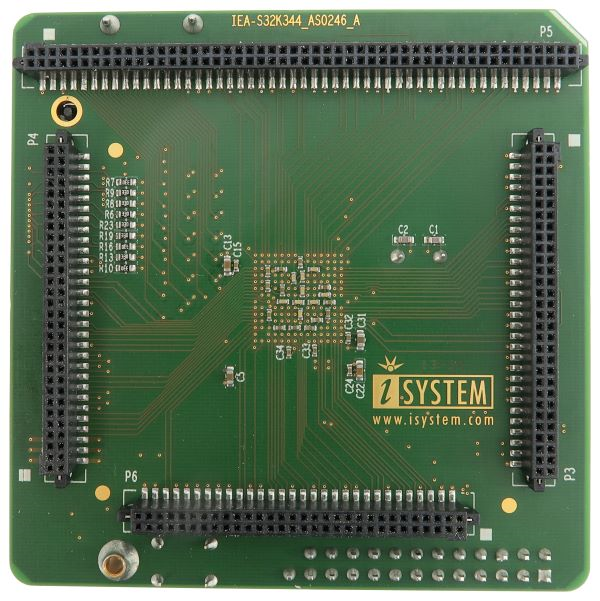

Click to enlarge
