Options
Target adaptation
The Emulation Adapter adaptation to a specific target microcontroller pincount and package is done via a Conversion board and a Solder part. Sometimes also an optional Extender is available. Conversion boards connect between the Emulation Adapter and the matching Solder part, which is being soldered on the embedded target side. Available Conversion boards, Solder parts and optional Extenders are listed in the table below.
Package (Pitch) |
Conversion board |
Type |
Extender |
Solder part |
|---|---|---|---|---|
QFP48 (0.5 mm) |
IEA-S32K344-311F48TQ |
Fixed |
/ |
IA48TQ-SOLDER |
HDQFP100 (0.5 mm) |
IEA-S32K344-312F100M |
IA100MQFP-EXTENDER |
IA100MQFP-SOLDER |
|
IEA-S32K344-342F100M |
||||
HDQFP172 (0.5 mm) |
IEA-S32K344-312F172M |
IA172MQFP-EXTENDER |
IA172MQFP-SOLDER |
|
IEA-S32K344-344F172M |
QFP Fixed Adaptation
The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part.
Conversion board |
Solder part |
|---|---|
|
|
HDQFP Fixed Adaptation
Conversion board |

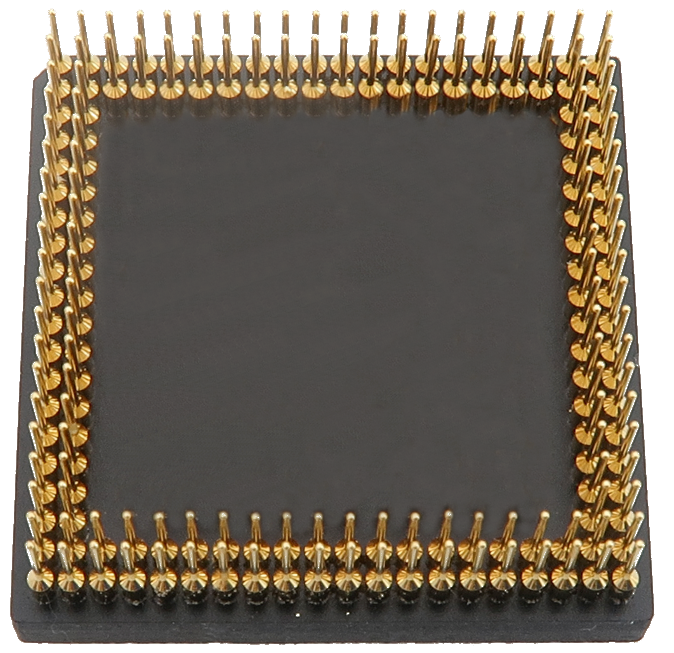

Extender (optional) |

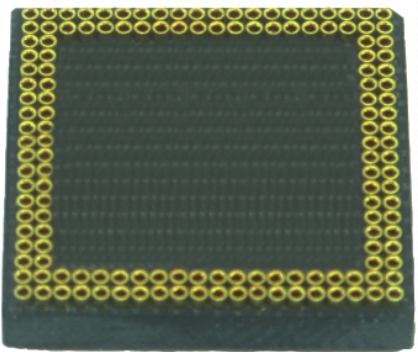

Solder part |
|---|---|---|
|
|
|
The Measurement board connects between the Emulation Adapter and the Conversion board. Embedded targets often do not have access to all the MCU pins / connected signals to connect with measurement equipment (oscilloscope, logic analyzer), its use provides easy access to all MCU pins. It is delivered together with an Layout board (chip signals are clearly marked), which is placed over the Measurement board.
Measurement board |
Layout board example for the Measurement board |
|---|---|
Ordering code: IAMS32K344 |
|
|
|
