Connectors P1-P4 pinout

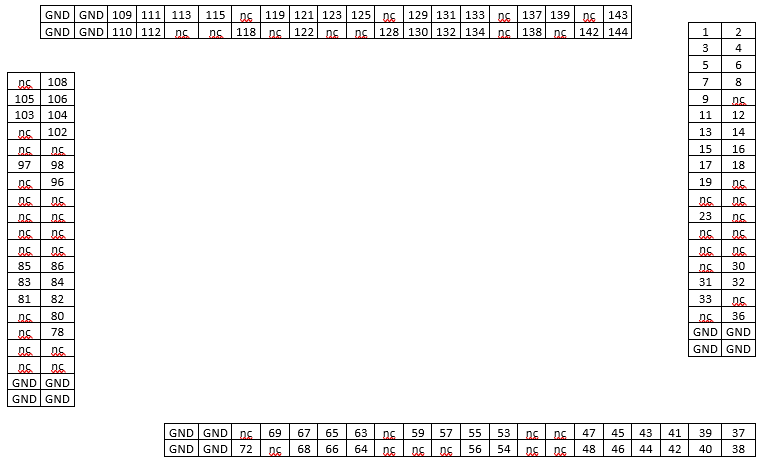

Picture shows a pinout of the four connectors P3-P6 on the bottom side of the Emulation Adapter (EA).




nc – Not Connected


Optionally, you could also design the Target directly providing connection to the emulation adapter via P1-P4 connectors. Connectors being used on the EA are female Tyco Electronics connectors, part number 0-0104652-4 (40 pin).
