Connectors P3-P6 pinout

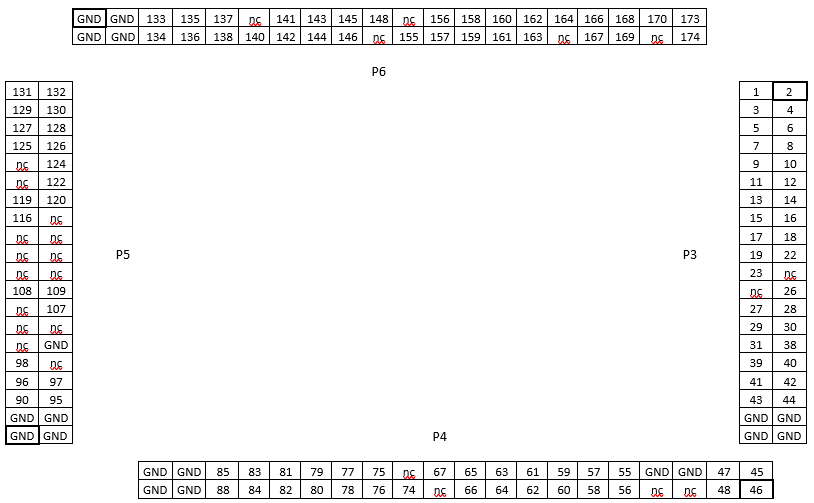

Next picture shows a pinout of the four connectors P3-P6 on the bottom side of the EA.
nc – Not Connected
Optionally, the you could also design the target directly providing connection to the EA via P1-P4 connectors. Connectors being used on the EA are female Tyco Electronics connectors, part number 0-0104652-4 (40 pin).
