Adaptation packages

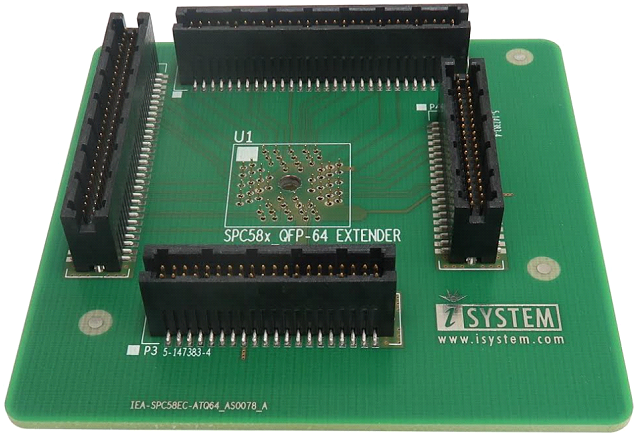

Conversion boards connect between the Emulation Adapter and the matching Solder part which is being soldered on the Target side.
Pin number |
Conversion Board |
Type |
Solder part |
|---|---|---|---|
64 |
IEA-SPC58EC-ATQ64 |
Fixed |
IA64ATQ-SOLDER |
100 |
IEA-SPC58EC-TQ100 |
Fixed |
IA100TQ-SOLDER |
144 |
IEA-SPC58EC-TQ144 |
Fixed |
IA144TQ-SOLDER |
176 |
IEA-SPC58EC-TQ176 |
Fixed |
IA176TQ-SOLDER |
Fixed Adaptation
The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part.
Conversion board |
Solder part |
|---|---|
|
|
