Schematics

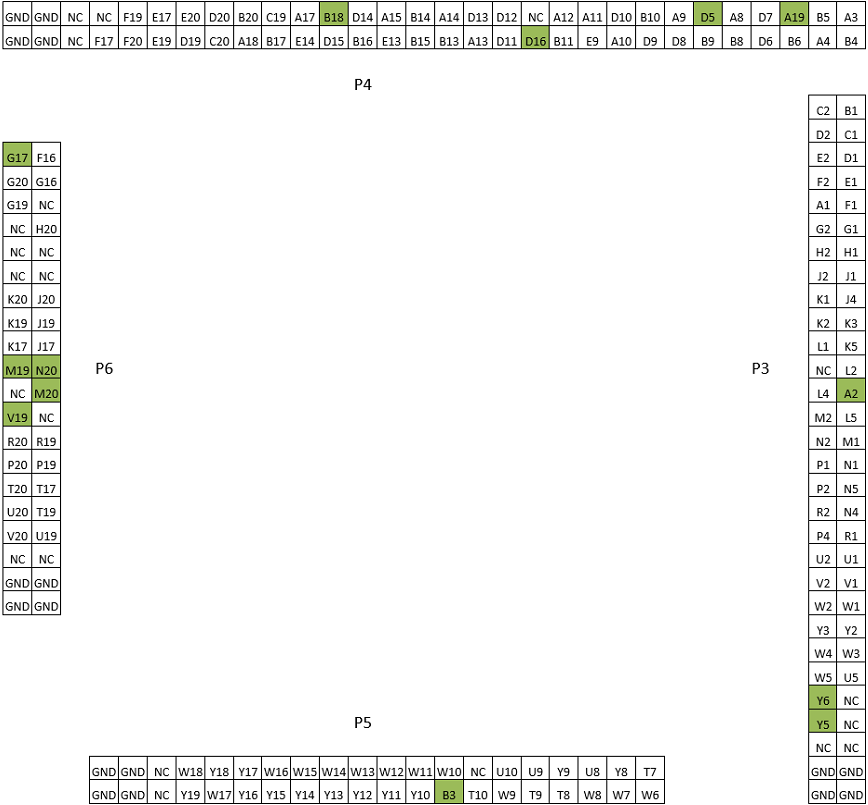

Below pinout of the four connectors P3-P6 on the bottom side of the Emulation Adapter.
NC – Not Connected
Green squares – Voltage pins
Optionally, target design can directly provide connection for the Emulation Adapter via the P3-P6 connectors. Connectors being used on the Emulation Adapter side are TE connectivity female connectors, part number: 0-0104652-4 (40-pin connector) and 0-0104652-6 (60-pin connector). The target must feature male matching connectors.
