Adaptation packages
Conversion boards connect between the Emulation Adapter and the matching Solder part which is being soldered on the Target side.
Pin number |
Conversion board |
Type |
Extender |
Solder part |
|---|---|---|---|---|
144 |
IEA-SPC58NH-TQ144 |
Fixed |
|

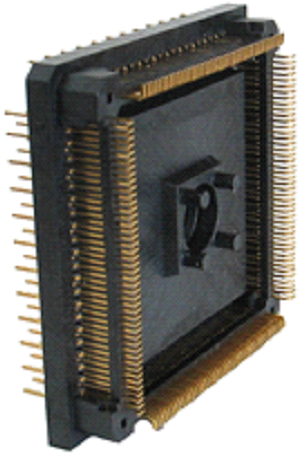

IA144TQ-SOLDER |
176 |
IEA-SPC58NH-TQ176 |
Fixed |
IA176TQ-SOLDER |
|
302 |
IEA-SPC58NH-BGA302 |
Fixed (BGA) |
IA302LFBGA-EXTENDER |
IA302LFBGA-SOLDER |
|
BGA Adaptation: The Target can have electronic components placed around the Microcontroller within the Emulation Adapter (EA) "ground floor", which impede connecting the EA to the Target. In such cases the distance of the EA from the Target can be optionally increased in steps of 3.25 mm by inserting the optional Extender. Not more than two Extenders should be used since every connector affects signal integrity. •With no Extender the lowest point of the EA is approx. 4.35 mm away from the Target. •With one Extender the lowest point of the EA is approx. 7.6 mm away from the Target. •With two Extenders the lowest point of the EA is approx. 10.85 mm away from the Target. Note that by adding the Extender or two, makes the whole setup less robust. Use caution with Extenders to prevent breaking of the hardware setup or just part of it. |
Fixed Adaptation
The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part.

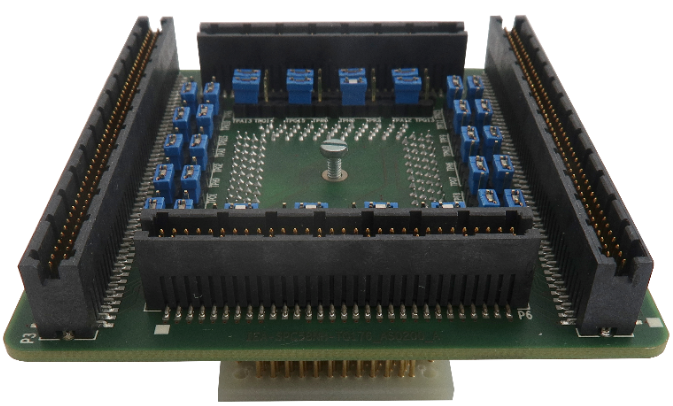

Conversion board |
Solder part |
||
|---|---|---|---|
|
|
|
|
BGA Adaptation
Conversion board |
Extender (optional) |
Solder part |
|---|---|---|
|
|
|
