9.17.156.0.105264 (04.06.2020)
Hotfix build release notes
IDE

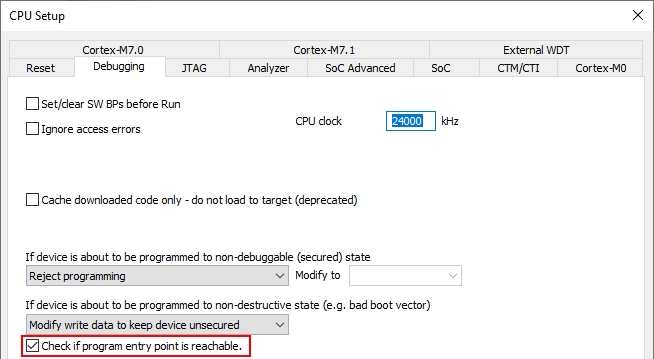

1. Checking program entry point can be enabled/disabled in Hardware menu / CPU Options / Debugging tab.
Added option Program empty cells to Hardware menu / <device> / Configure... If checked, the entire download file is programmed. If unchecked, the sections which contain the FLASH default value (typically 0xFF) are not programmed.
2. HSeger, HSTLink, HIFXDAS: Support deprecated
3. iC3000: Support deprecated
4. iTCHi: iSYSTEM Trace Configuration Helper is a standalone program that comes with winIDEA and helps the user to create an AUTOSAR trace configuration file called "iSYSTEM Profiler XML".
ARM Cortex
1. Debug status: Inaccessible core state reported as INACCESSIBLE
2. Kinetis KEAZ: KEAZN 16: Supported
3. TI Stellaris LM3S: Support discontinued
4. Analog Devices ADUCM330/331: Support discontinued

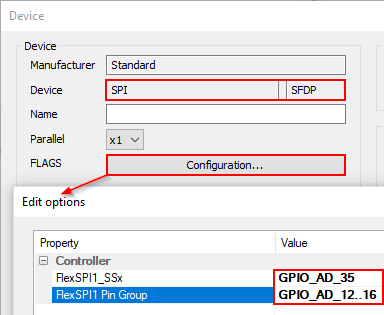

5. NXP i.MX RT1170 device family: UMI QSPI programming supported.
Note: For the device iMXRT1176 two QSPI flashes can be used. Selected device is Standard SPI SFDP.
•Flash #1 - By default no changes are necessary
•Flash #2 - Set FlexSPI1_SSx to GPIOD_AD_35 and FlexSPI1 Pin Group to GPIO_AD_12..16
6. iMX RT1060: Added SWO trace support

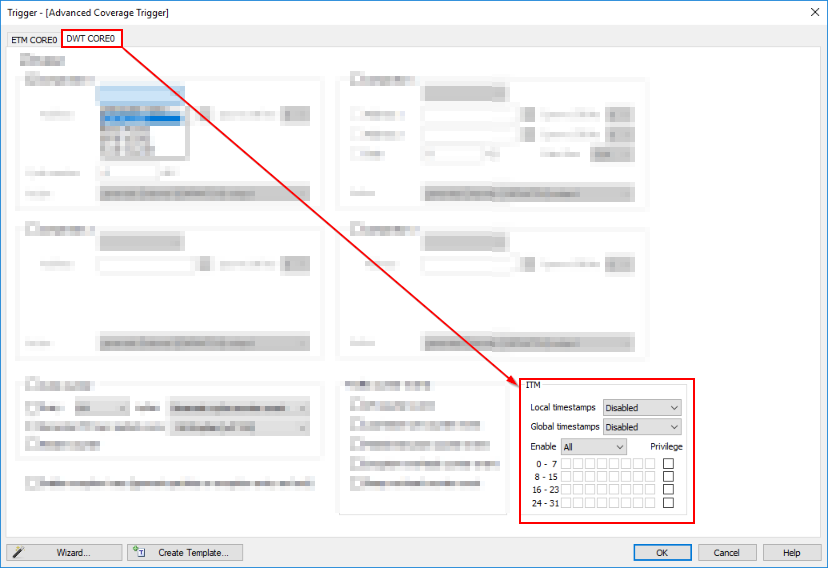

7. Cortex-M Analyzer: ITM configuration module separated from DWT CORE0 tab to individual tab ITM.
Current: Analyzer / Manual Trigger/Recorder Configuration / ITM tab |
Previous: Analyzer / Manual Trigger/Recorder Configuration / DWT CORE0 tab |
Infineon TriCore

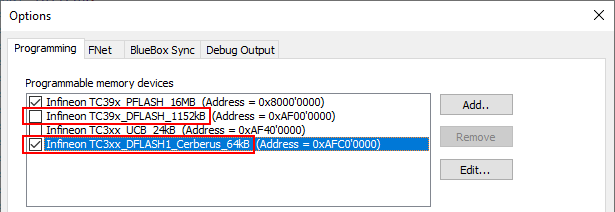

TC3xx: DFLASH1 programming via Cerberus supported. To program DFLASH1 disable DFLASH and enable DFLASH1 in via Hardware menu / Options.
