9.21.0.0.114682 (26.01.2021)

Verified build release notes





Supported IDE features and graphics



Watch the introduction video where we explain the configuration changes in the new version of winIDEA and how does it all work!



winidea921intro



For more information about winIDEA 9.21 Configuration refer to winIDEA Online Help - Session Configuration chapter.





1. Emulation options, Files for Download and Operating Systems dialogs replaced by one Session Configuration

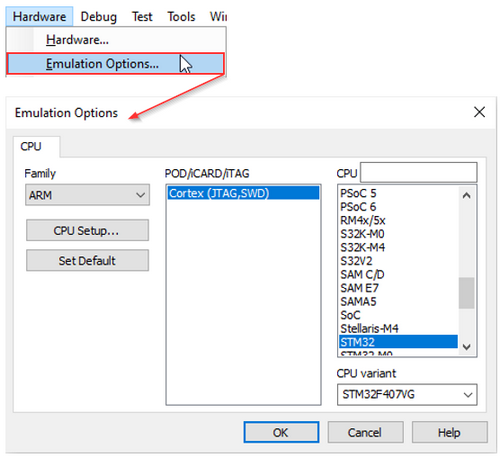

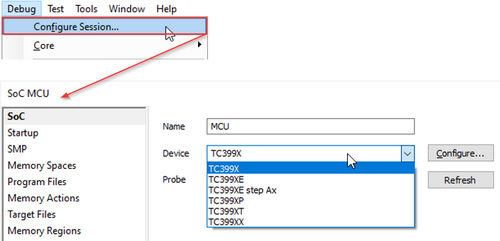

1.1 Emulation Options



Currently Debug menu / Configure Session

Previously Hardware menu / Emulation Options

EmulationOptions-2
EmulationOptions

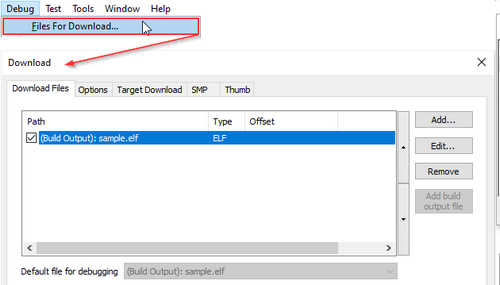

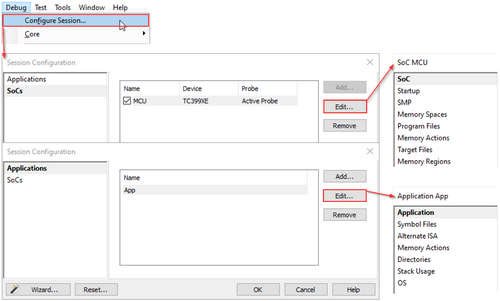

1.2 Files for Download



Currently Debug menu / Configure Session

Previously Debug menu / Emulation Options

Files-for-Download-2
Files-for-Download

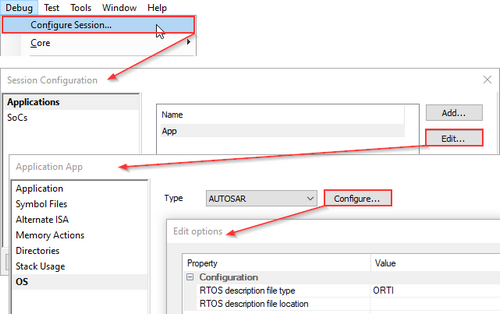

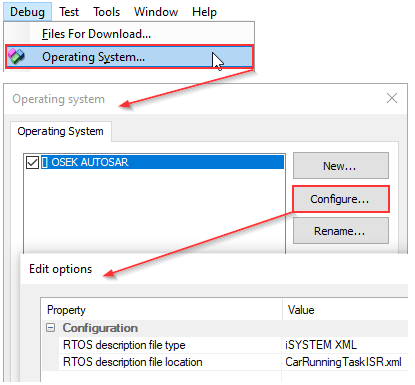

1.3 Operating System



Currently Debug menu / Configure Session / SoCs / OS

Previously Debug menu / Operating System

Operating-System-2
Operating-System

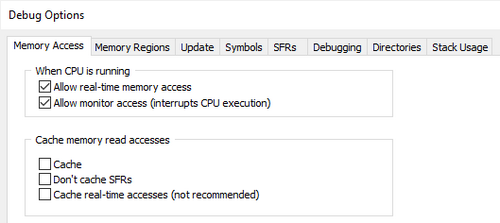

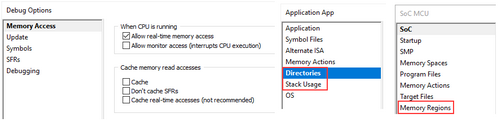

2. Directories, Stack Usage and Memory Regions (Debug Options dialog) moved to the Session Configuration dialog.



Currently

Directories & Stack Usage - Open Debug menu / Configure Session / Applications / Edit

Memory Regions - Open Debug menu / Configure Session / SoCs / Edit

Previously

Debug menu / Debug Options

Debug-Options-2



Debug-Options





3.  Analyzer

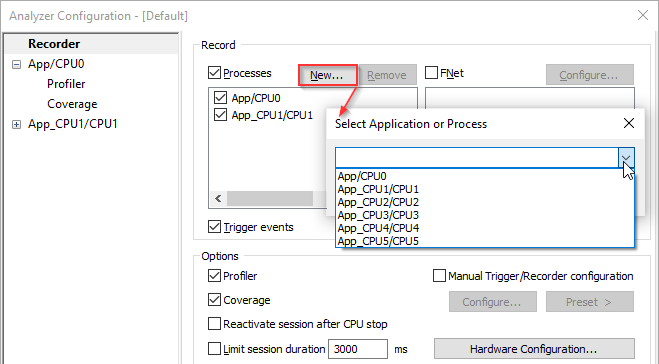

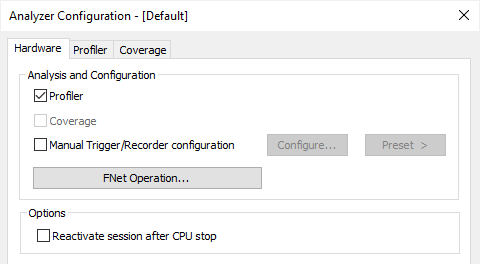

3.1. Add an Application or a Process you wish to record and enable it.



Currently

Previously

Analyzer



Analyzer-2

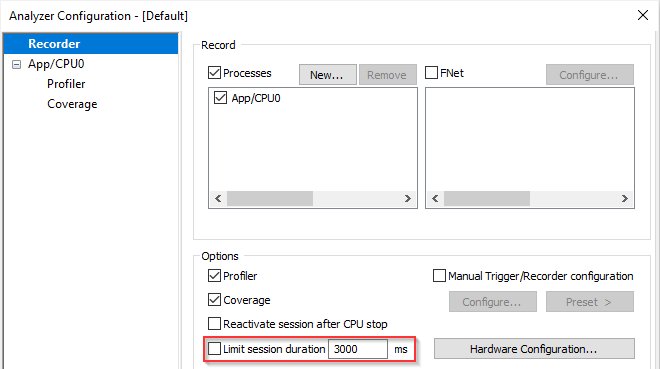

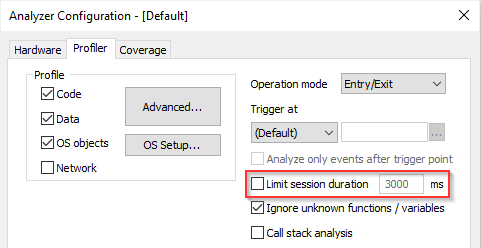

3.2 Option Limit session duration moved to the Recorder page.



Currently Analyzer / Recorder page

Previously Analyzer / Profiler tab

Limit-session-duration2



Limit-session-duration

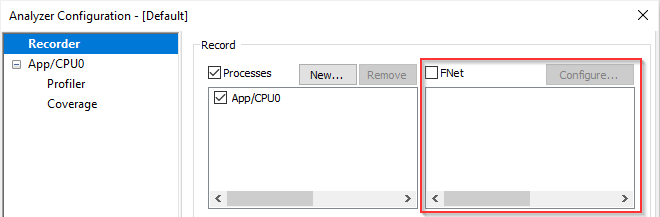

3.3 FNet Areas (Network and AUX profiling) moved to the Recorder page.



Currently Analyzer / Recorder page

Previously Analyzer / Profiler tab

Profiler-Fnet.areas2



Profiler-Fnet.areas





4. New icons for iSYSTEM software tools.



Currently

Previously

winIDEA

testIDEA

isystem.connect

daqIDEA

winIDEA

testIDEA

isystem.connect

daqIDEA

winIDEAicon-2

testideaicon2

isystemconnecticon-2

daqideaicon2

winIDEAicon-old

testideaicon

isystemconnecticon

daqideaicon

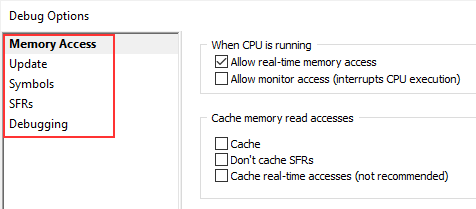

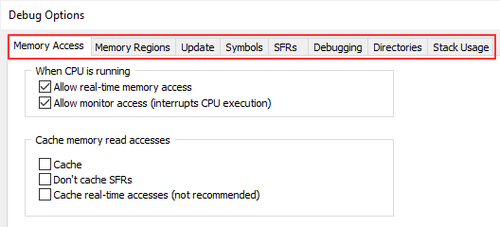

5. Dialog tabs changed to pages.



Currently

Previously

Tabs-to-Pages
Tabs-to-Pages-2



6. Editor - Added a feature to copy colored text.



7. Hardware tab (Vref configuration) moved from Hardware menu / Emulation Options to Hardware menu / CPU Options.



8. TriCore plugin Counters view refreshed.

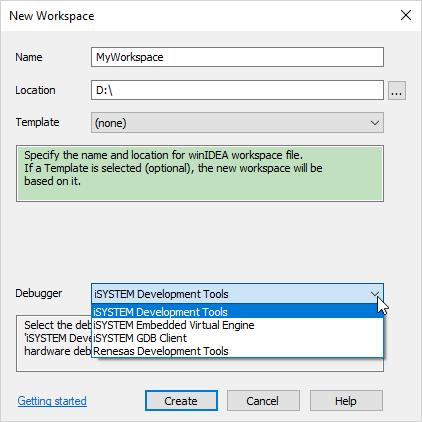

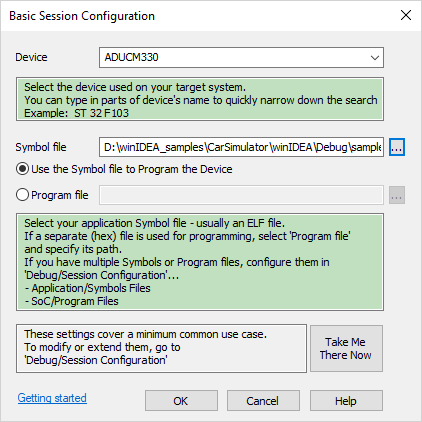

9. New Workspace configuration with various Hardware Debuggers, followed by a Basic Session Configuration.



Specify Name and Location

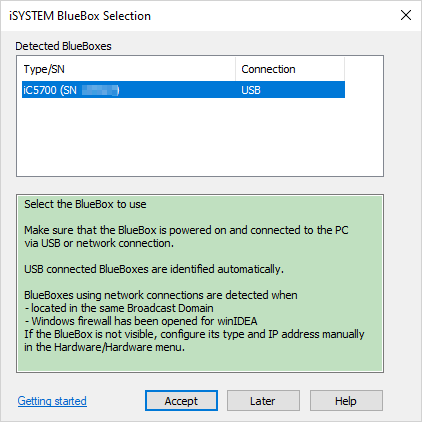

Add your Debugger BlueBox

Specify your Device and add your Symbol file (& Program file)

CreateNewWorkspace3
CreateNewWorkspace4
CreateNewWorkspace5

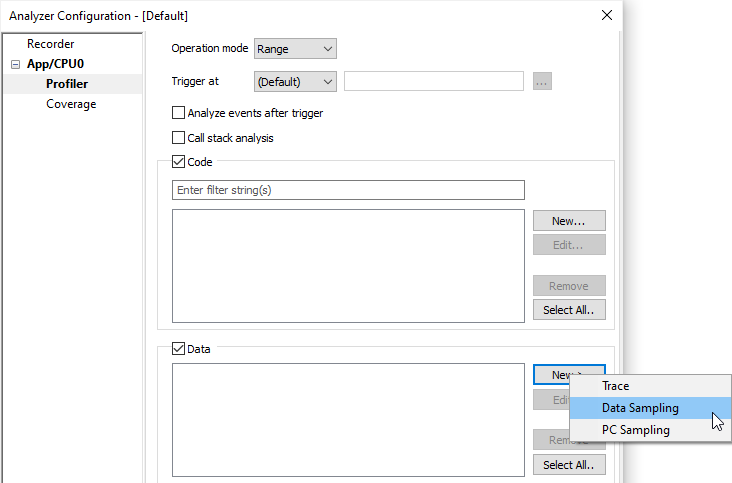

10. Profiler Sampling

New feature supported - Profiling data variables or program execution via an operational debug port. The speed of sampling can  be selected in the Profiler Data Area (Profiler configuration). Two types of Sampling are PC Sampling and Data Sampling and can be configured in the Analyzer Configuration dialog under Data section.

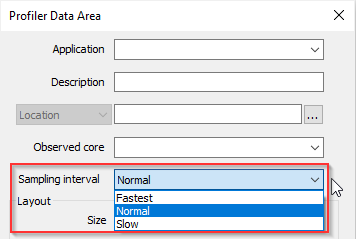

Select the speed of Sampling

Select the type of Sampling

ProfilerSampling2

ProfilerSampling







Newly supported devices

Infineon

TC375TI

TC366DP

TC377DP

TC375DP





ARM

HVC4420F

TI AWR1843

i.MX 8X





Microchip / Atmel

SAMV7 devices





ST Microelectronics

STM32MP15xx (SWO trace)

STM32WB55

STMG4xxx variants (STM32G483xE, STM32G473xE, STM32G473xC, STM32G473xB, STM32G484xE)





Renesas

R-Car V3H





Cypress / Infineon

CYT2B7, CYT2B9, CYT2BL, CYT3BB, CYT4BB (Memory access over System Access Port)

CYT2B7, CYT2B9, CYT2BL (Multi-core sync)

CYT2BL (TVII-B-E-4M)

CYT3BB (TVII-B-H-4M)

PSoC4 HVPA (CY8C41xxLCE-HV) silicon revision A0





NXP

i.MX LS1021A device family (Reset Configuration Word programming support)

S32G2 derivates (S23G233A, S23G234A, S23G254A)





Known issues

Refer to this document for more information.





Deprecated hardware and devices

NXP MPC5xxx / ST SPC5

Last build supporting iC3000HS/GT with iCard.



Infineon TC1xxx (TriCore AUDO / AUDO FUTURE)

Last build supporting architecture Infineon TC1xxx (TriCore AUDO / AUDO FUTURE).



Renesas RH850 + iC6000

Latest verified build is 9.17.188.





Other regular updates and features

Ranger

B0 ROM revision of Ranger NCJ29D5 - Supported device.





ST Microelectronics (Chorus6M and Bernina)

HSM FLASH programming with HSM core supported on devices:

SPC58EG

SPC58NG

SPC58VQ

SPC58NN
