9.21.131
Hotfix build release date: 8 November 2022
Full winIDEA version: 9.21.131.0.142636
IDE
Cypress PSoC6: trace GPIO configuration
In Hardware / CPU Options, the dialog for Cypress PSoC6 trace GPIO selection was moved from SoC Advanced to Analyzer / SoC Initialization as a parameter to the trace init EVE script.

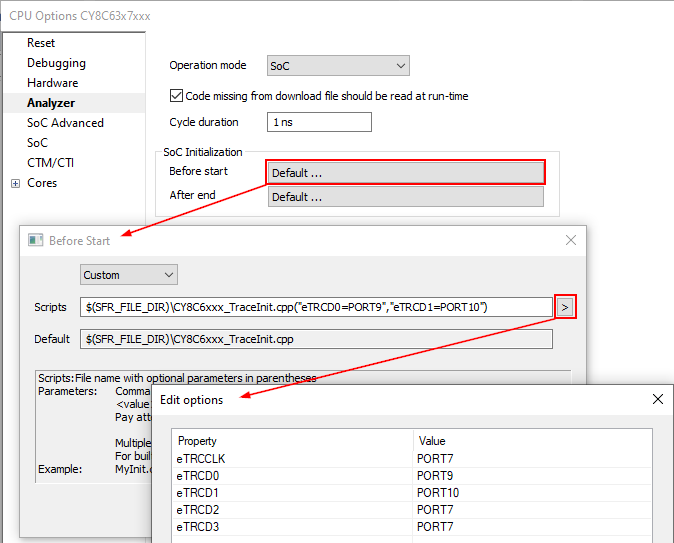

Currently Hardware/CPU Options / Analyzer / SoC Initialization |

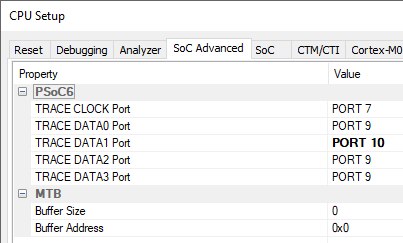

Previously Hardware/CPU Options / SoC Advanced |
 |
 |
Newly supported devices
ST Microelectronics
SR6P6x - Added support for:
•Trace: M4 ETM ETR, M4 ITM ETR, M4 DWT ITM ETR
SR6P7G7 - Added support for:
•Trace: M4 ETM ETR, M4 ETM Aurora, M4 DWT ITM ETR, M4 DWT ITM Aurora
Renesas
RH850 E2M - Added support for R7F702002
RH850 F1 KM-S2 - Added support for R7F701764
Deprecated hardware and devices
NXP MPC5xxx / ST SPC5 + iC6000
Latest verified build is 9.21.129.
Infineon TriCore + OCTB trace + iC6000
Latest verified build is 9.21.129.
