Release Notes

Hotfix build release notes





Newly supported devices

ST Microelectronics

Chorus 4M devices - Added support for HSM monitor.





IDE

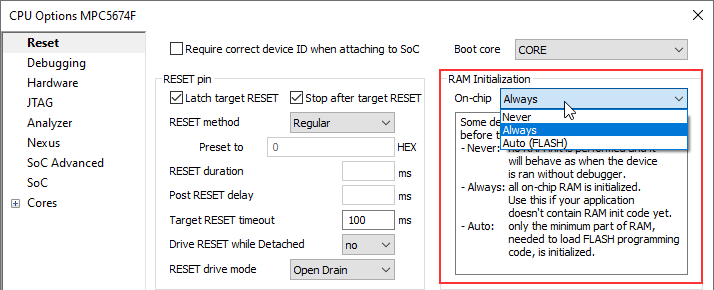

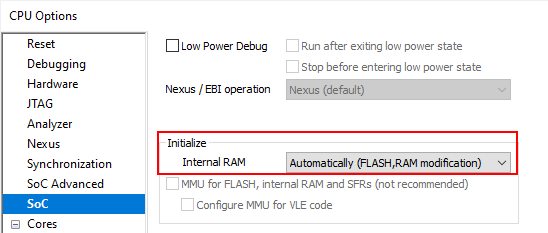

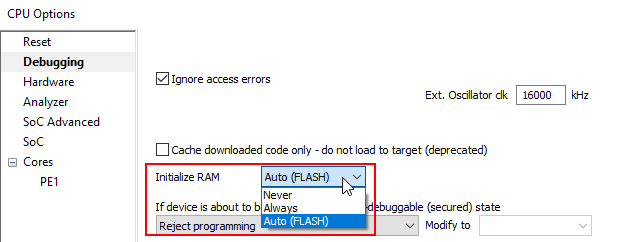

RAM Initialization

Reset page in in Hardware menu / CPU Options now provides RAM initialization configuration for all devices.









Edit values in Debug and Plugin windows

Watch, Locals, This, SFRs Windows use F2 key to edit values.

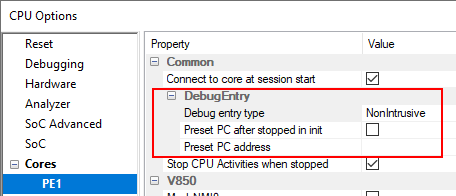

Debug Entry

Debug Entry added to Hardware menu / CPU Options / Cores. It enables you to configure per-core startup actions.

•Debug entry type (Non intrusive and Catch) - Defines how to connect to the  non-boot core(s) core.

•Preset PC after stopped in init - Preset the PC after a core is stopped during a debug session start.

•Preset PC address - Preset the PC for a selected address via the Browsing Variables dialog.

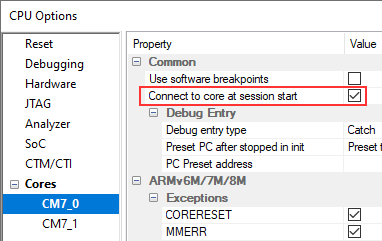

Connect to core at session start

Option added to Hardware menu / CPU Options / Cores / <core>. When checked the debugger will attach to the core on a debug session start.
