9.21.20.0.120933 (29.06.2021)
Verified build release notes
Supported IDE features and graphics

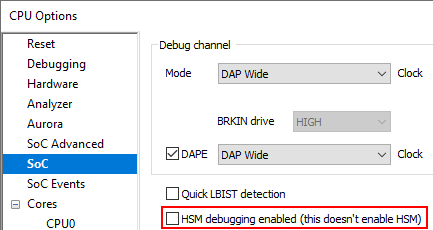

HSM enabled
Option removed from Hardware menu / CPU Options / SoC page. Replaced by Hardware menu / Cores / HSM / Connect to core at session start.
Target Board Presets
By selecting supported board winIDEA automatically selects the correct device settings.

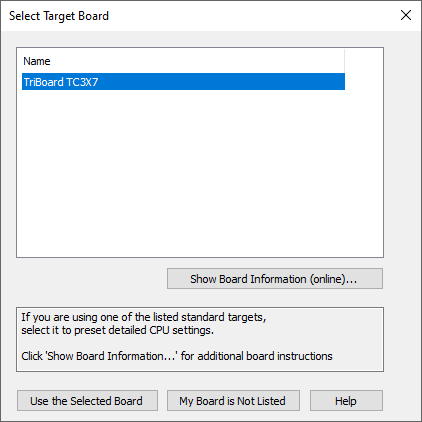

The dialog Select Target Board can be opened via:

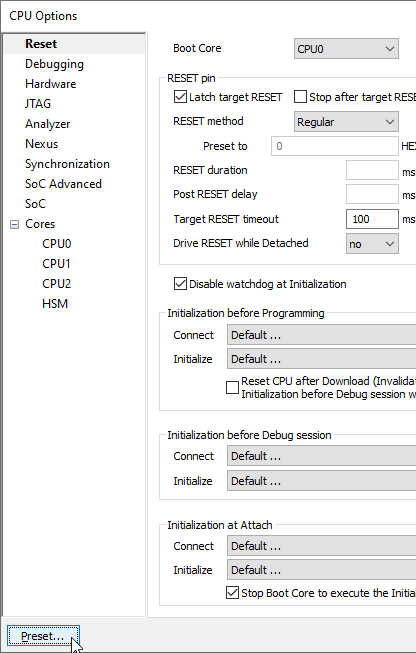

•Preset button in Hardware / CPU Options dialog.

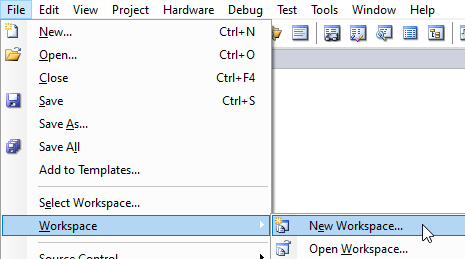

•File / Workspace / New Workspace if supported Target Board is selected in winIDEA.
Hardware / CPU Options / Preset button |
File / Workspace / New Workspace (last dialog) |
---|---|
Supported hardware
iC5700 CI BlueBox On-Chip Analyzer
Hardware platform which allows hardware debugging and testing a wide range of embedded microcontroller platforms that are based on a variety of processor architectures and is implemented into Continuous Integration (CI) infrastructures. Functionality can be further extended with the addition of our Active Probes. iC5700 CI comes with almost the same functionality as the standalone products and is licensed on yearly subscription basis. More information in the iC5700 CI User Manual.
iC5000 CI BlueBox On-Chip Analyzer
Hardware platform which allows hardware debugging and testing a wide range of embedded microcontroller platforms that are based on a variety of processor architectures and is implemented into Continuous Integration (CI) infrastructures. iC5000 CI comes with almost the same functionality as the standalone products and is licensed on yearly subscription basis. More information in the iC5000 CI User Manual.
Newly supported devices
ST Microelectronics
Added support for:
•STM32L151QC •STM32L151QE •STM32L151RC •STM32L151RE •STM32L151UC •STM32L151VE •STM32L151ZC •STM32L151ZE •STM32L152CC |
•STM32L152QC •STM32L152QE •STM32L152RC •STM32L152RD •STM32L152RE •STM32L152UC •STM32L152VE •STM32L152ZC •STM32L152ZE |
Renesas
R7F701644x (RH850/F1KM-S4)
NXP
NXP i.MX 8QM devices
Removed support
iONE, iTAG
ST Microelectronics
Chorus4M devices
Known issues
Refer to this document for more information.
