9.21.22
Hotfix build release date: 14 July 2021
Full winIDEA version: 9.21.22.0.121513
IDE
SoC startup configuration

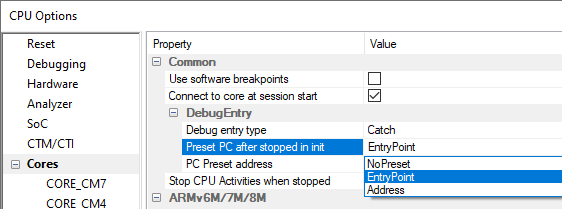

SoC startup options can be configured per-core in Hardware / CPU Options / Cores.
Option |
Current location |
Previous location |
|
|---|---|---|---|
Previous naming |
New naming |
Hardware / CPU Options / Cores |

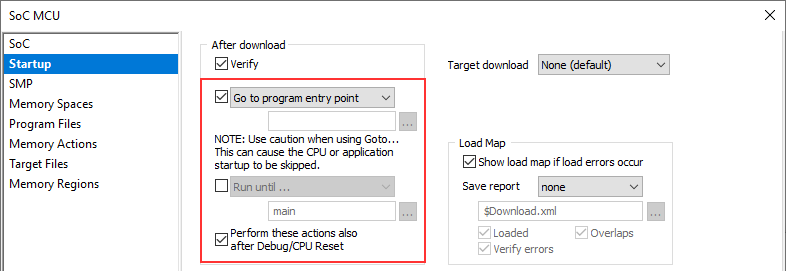

Debug / Configure Session / SoC / Startup |
Go to |
Entry Point |
||
Go |
Address |
||
Run |
Debug entry type |
||
The following options are removed from Debug / Configure Session / SoC / Startup.
•Run until
•Perform this action also after Debug / CPU Reset
Currently Hardware / CPU Options / Cores |
Previously Debug / Configure Session / SoC / Startup |
|---|---|
 |
 |
Storage Device Programming
FLASH programming for Chorus6M and Bernina devices updated to new approach - UMI. Settings previously configured in CPU Options window are now configured separately by types of FLASH.

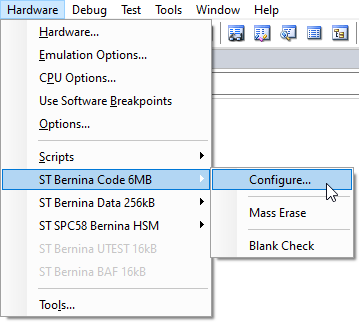

Currently Hardware / <Device, FLASH> / Configure |

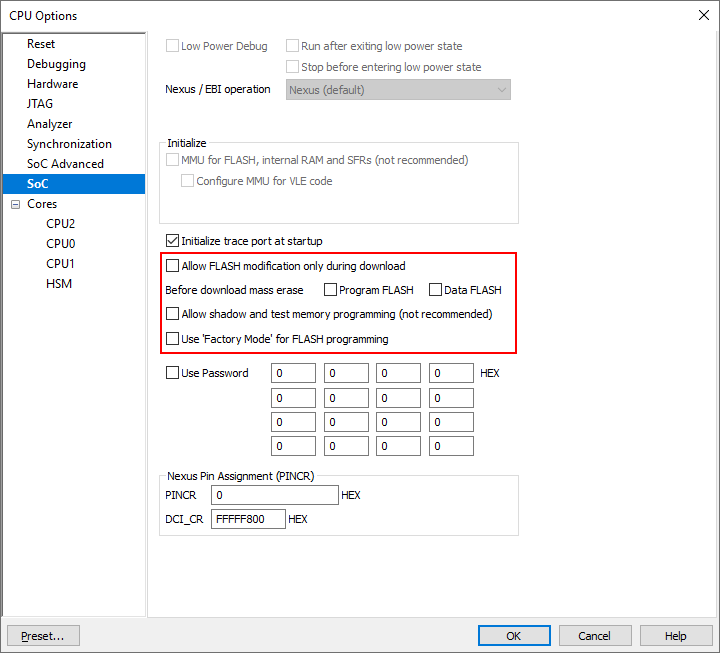

Previously Hardware / CPU Options / SoC |
 |
 |
CSV Profiler Export
Added CSV export option to View / Analyzer / Profiler Timeline / Export.
