9.21.225
Verified build release date: 29 January 2024
Full winIDEA version: 9.21.225.0.164228
Newly supported devices
SiliconLabs
EFR32xG2x
Adding support.
•Debug: JTAG (not available on EFR32MG21 variants), SWD, Cortex-M33
•SFR
•UMI: Internal
Variants:
•EFR32FG22xxxxH
•EFR32MG22xxxxH
•EFR32MG21xxxxH
•EFR32MG21xxxxI
•EFR32MG21xxxxJ
winIDEA version: 9.21.220.0.161621
SiliconLabs
EFR32xG2x
Extending support.
•Trace: ETM Parallel (1-bit only)
•Trace: DWT ETM Parallel (1-bit only)
•Trace: DWT ITM Parallel (1-bit only)
winIDEA version: 9.21.220.0.161621
NXP
S32E27/S32S27/S32E28/S32S28
Extending support for:
•Trace: M33 STM HSSTP, R52 STM HSSTP, System Manager (M33) ETM HSSTP, System Manager (M33) DWT ITM HSSTP, System Manager (M33) ITM HSSTP, FlexLLCE (M33) ETM HSSTP, FlexLLCE (M33) DWT ITM HSSTP, FlexLLCE (M33) ITM HSSTP
winIDEA version: 9.21.220.0.161621
S32K14x
Extending support.
Variants:
•S32K142W
•S32K144W
winIDEA version: 9.21.220.0.161621
S32K328
Adding support.
•Debug: JTAG, SWD, 2x CM7, multicore (core run/stop sync)
•SFR
•UMI: Code FLASH, Data FLASH
•Trace: ETM Parallel, ITM Parallel, DWT ITM Parallel, HTM Parallel, ETM SWO, ITM SWO, DWT ITM SWO, HTM SWO, ETM ETF, ITM ETF, DWT ITM ETF, HTM ETF
winIDEA version: 9.21.224.0.163423
S32K388
Extending support.
•Trace: M7 ETM Parallel
•Trace: M7 ITM Parallel
•Trace: M7 DWT ITM Parallel
•Trace: M7 HTM Parallel
winIDEA version: 9.21.221.0.162412
Renesas
RH850 U2B
Extending support for:
•Trace: SoftTrace Aurora, Program Aurora, Data Aurora
winIDEA version: 9.21.220.0.161715
ST SR6
Extending support for:
SR6P6x
•Debug: JTAG password challenge, JTAG password challenge HSM
SR6P7G7
•Debug: JTAG password challenge
SR6G7
•Debug: JTAG password challenge
winIDEA version: 9.21.216.0.160697
ST STM32U535/545
Adding support.
•Debug: JTAG, SWD, M33, Peripheral Freeze
•SFR
•UMI: Internal, External SPI
•Trace: ETM Parallel, DWT ETM Parallel, DWT ITM Parallel, DWT ITM SWO, ITM SWO
Variants:
•STM32U535xB
•STM32U535xC
•STM32U535xE
•STM32U545xE
winIDEA version: 9.21.223.0.163058
Supported IDE features and graphics
Target Board Preset Configurations
With winIDEA 9.21.217.0.161149 we are releasing new Target Board Preset Configuration. This feature presets winIDEA for a specific EVB/Emulation Adapter
•Infineon TC397XE Compact Emulation Adapter IEA-TC397XE
•Infineon TC377TE Compact Emulation Adapter IEA-TC377TE
Technical support dialog
Options to select testIDEA, daqIDEA and EmuSync configuration are added to the Technical support dialog which is reachable via Help / Support / Technical Support.

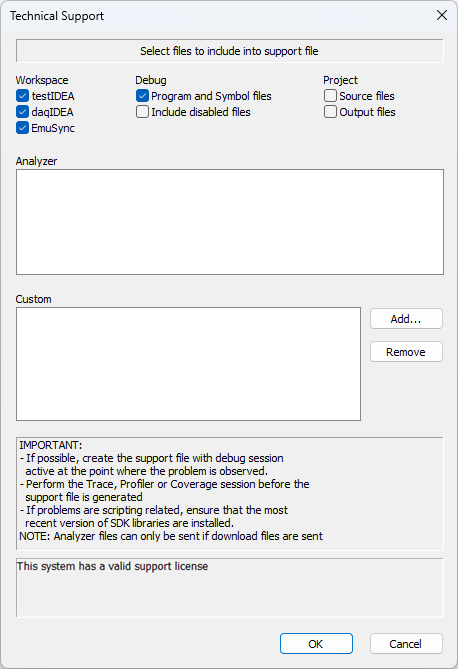

Currently |

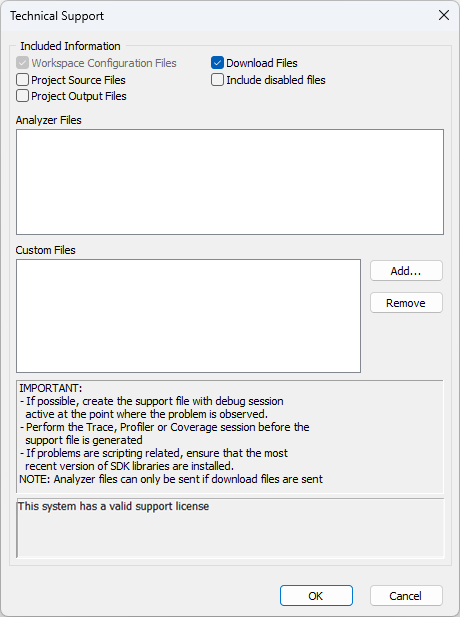

Previously |
 |
 |
Known issues
Refer to this document for more information.
