9.21.271
Verified build release date: 28 September 2024
Full winIDEA version: 9.21.271.1.188886
Supported IDE features and graphics
GDB Client update
The new GDB Client in winIDEA features a cleaner user interface and improved capabilities, including direct program debugging without a GDB Server.

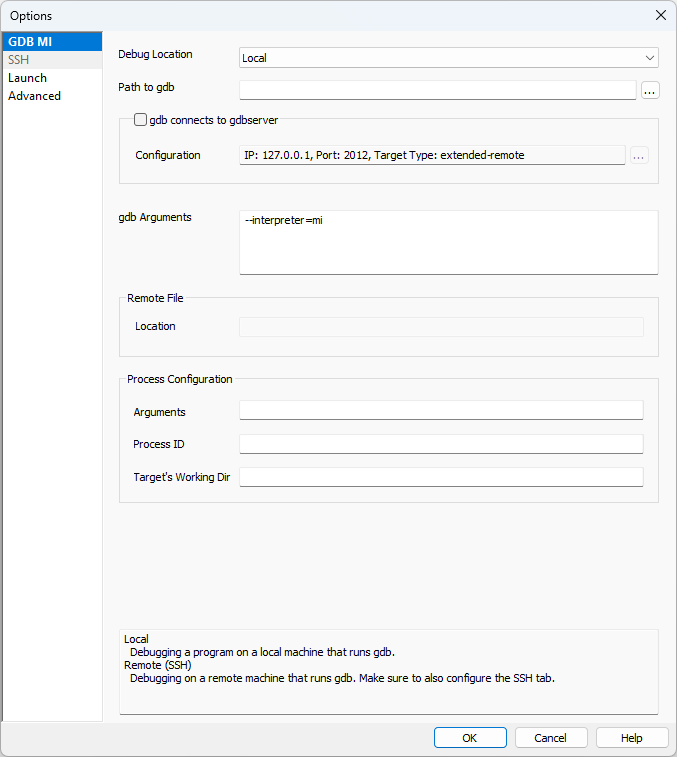

Currently:

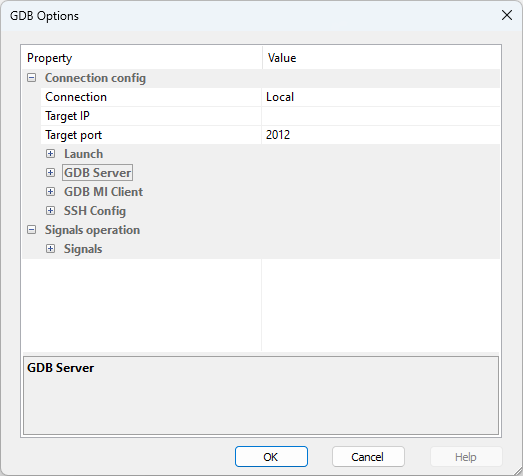

Previously:
List of unlocked devices

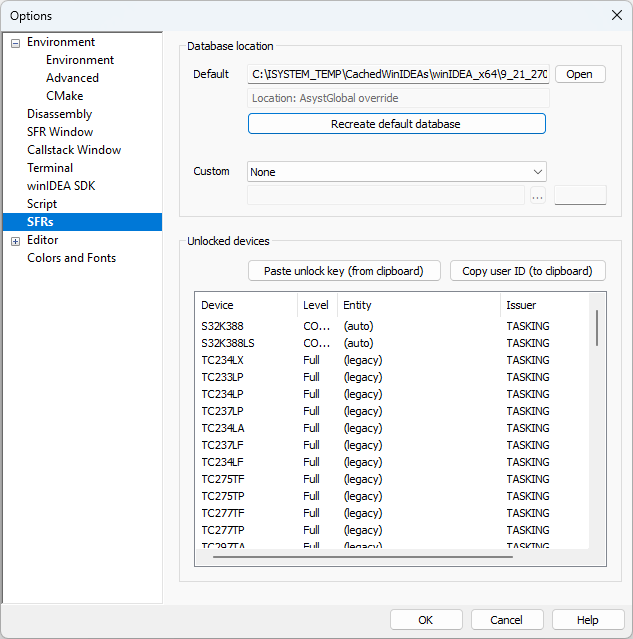

A list of unlocked devices has been added to Tools | Options | SFRs. You can now unlock a device in this section with an unlock key received from Support.
Preserve symbols between winIDEA sessions option modified
The option Preserve symbols between winIDEA sessions in Debug | Debug Options | Symbols is renamed to Load debug symbols at workspace open in Tools | Options | Environment:

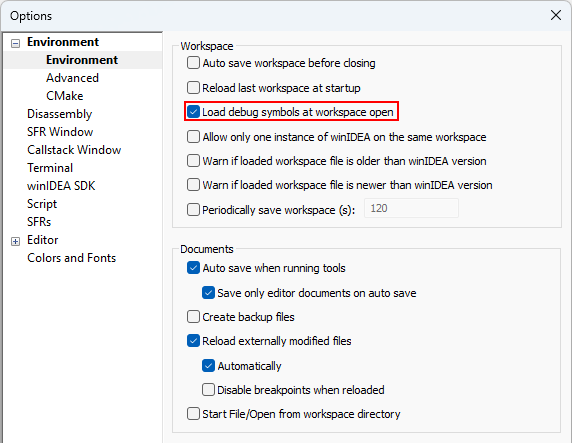

Currently:

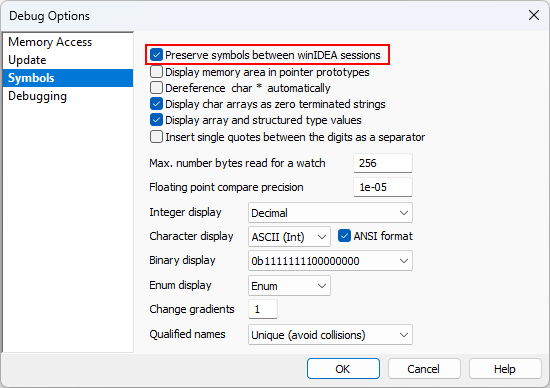

Previously:
Infineon TriCore: Debug status shows stop reason
Status shows stop reason if available. Abbreviations are taken from Infineon reference manuals (e.g. TRxEVT, SWEVT, etc.).
Example: Status after a hardware breakpoint event.
[CPU0] STOP [TRxEVT]
Workspace dialog

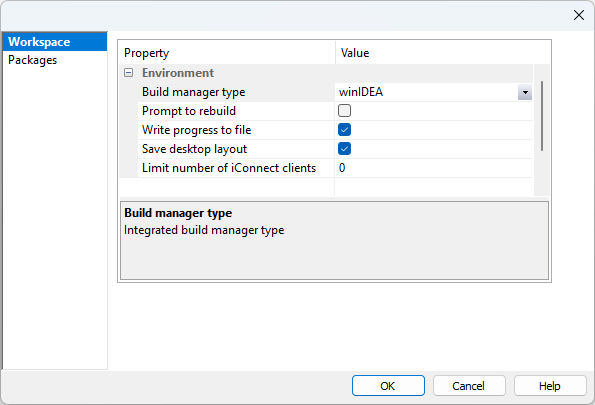

The Workspace dialog, found via Tools | Workspace, lets you select different environment settings and install optional packages.
Two options have been renamed and moved to Workspace from Tools | Options:
•Select build manager previously in Tools | Options | Environment has been renamed Build manager type.
•Limit number of clients previously in Tools | Options | winIDEA SDK has been renamed Limit number of iConnect clients.
Newly supported devices
Atmel
ATSAMS7x
Adding support.
Supported features:
•Debug
•Internal FLASH programming
•Trace
winIDEA version: 9.21.269.0.184993
Zhixin Semiconductor
Z20K11xN
Adding support.
Supported features:
•Debug: SWD, CM0+
•SFR
•UMI: FLASH
Variants:
•Z20K114N
•Z20K116N
•Z20K118N
winIDEA version: 9.21.269.0.183899
Texas Instruments
MSPM0G350x
Extending support.
Variants:
•MSPM0G3505
•MSPM0G3506
winIDEA version: 9.21.270.0.185785
MSPM0G310x
Adding support.
•Debug: SWD, Cortex-M0+
•UMI: Internal
•SFRs
Variants:
•MSPM0G3105
•MSPM0G3106
•MSPM0G3107
winIDEA version: 9.21.270.0.185785
Marvell
MVQ622x
Adding support.
•Debug: JTAG, 2x R52 (LockStep)
•UMI: External SPI
Variants:
•MVQ6222
•MVQ6223
winIDEA version: 9.21.270.0.185311
ST
SR6P3
Adding support.
Supported features:
•Debug: JTAG, SWD, 3x Cortex-R52 (3x lockstep), DSPH (CM4), DME (CM4) (lockstep), HSM (CM4), multicore (core sync)
•UMI: R52 RAM Init, R52 Internal, HSM Internal
•SFR
winIDEA version: 9.21.271.0.186991
Supported hardware
Active Probe Parallel
Active Probe Parallel enables debugging, tracing, and testing a range of microcontroller architectures supported by the winIDEA. It supports various protocols:
Debug protocols:
•Joint Test Action Group (JTAG)
•Arm Serial Wire Debug (SWD)
•RH850 Low Pin-Count Debug (LPD)
Trace protocols:
•On-chip trace buffers
•Parallel Trace
•Software Trace
•Single Wire Output (SWO)
winIDEA version: 9.21.269.0.184279
Known issues
Refer to this document for more information.
