Release Notes

Hotfix build release notes





Newly supported devices

Marvell

88Q5020, 88Q5040, 88Q5054 - Added support for:

•Debug: JTAG, M7

•UMI: QSPI





ARM Cortex

Generic ARM CM0 - Added support for:

•Debug

•Trace



Devices Cortex-Mx/Ax/Rx were removed.





China-Core

CCFC2002BC - Added support for:

•Debug: JTAG

•Debug

•SFR

•FPM





Texas Instruments

TMS570LS0432 - Added support for:

•Debug: JTAG, R4

•SFRs

•UMI: Internal Flash





RH850

P1M-E  - Added support for the following devices:

•R7F701378

•R7F701380

•R7F701382



Supported features:

Debug: LPD

•SFR

•UMI: Data, Code

•Trace: Soft Trace On-Chip, Program On-Chip,  Data On-Chip, Soft Trace LPD





RH850

R7F702301 - Added support.





NXP

i.MX 8M Nano - Added support for the following devices:

•i.MX 8M Nano Quad - MIMX8MN6xVT

•i.MX 8M Nano QuadLite - MIMX8MN5xVT

•i.MX 8M Nano UltraLite Quad - MIMX8MN5xVP

•i.MX 8M Nano Dual - MIMX8MN4xVT

•i.MX 8M Nano DualLite - MIMX8MN3xVT

•i.MX 8M Nano UltraLite Dual - MIMX8MN3xVP

•i.MX 8M Nano Solo - MIMX8MN2xVT

•i.MX 8M Nano SoloLite - MIMX8MN1xVT

•i.MX 8M Nano UltraLite Solo - MIMX8MN1xVP



Supported features:

•Debug: JTAG, A53, M7, multicore





IDE

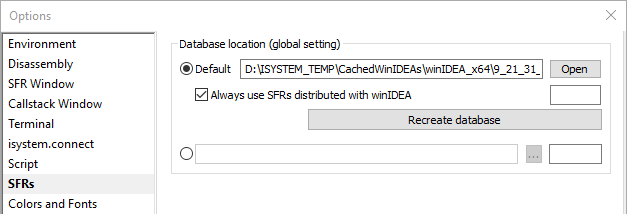

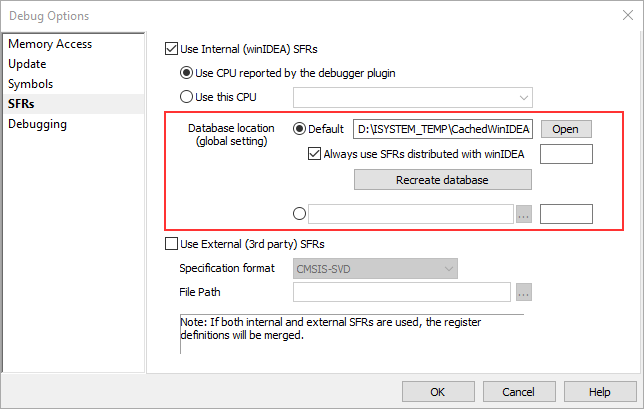

SFRs Database location

SFRs Database location moved to Tools menu / Options / SFRs from Debug menu / Debug Options / SFRs.

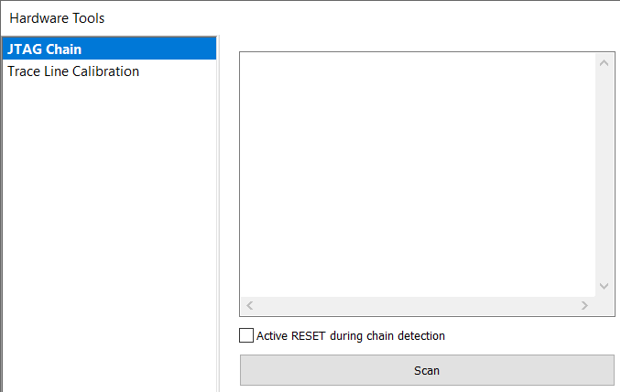

JTAG Chain detection

Removed from Hardware menu / Tools.

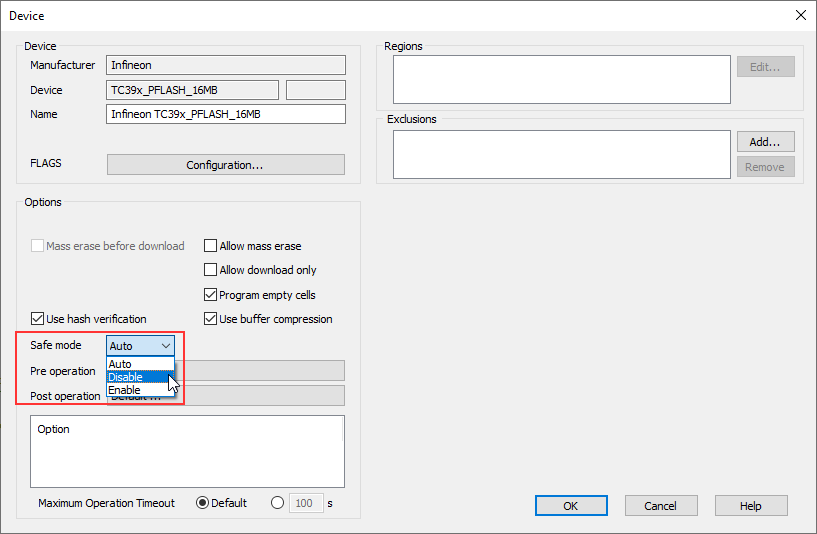

Safe mode

Safe mode option, which minimizes the possibility that a specific sector would be incorrectly programmed in case of sudden communication or power loss, added to Hardware / <Device> / Configure

Safe mode types are:

•Auto

•Disable

•Enable

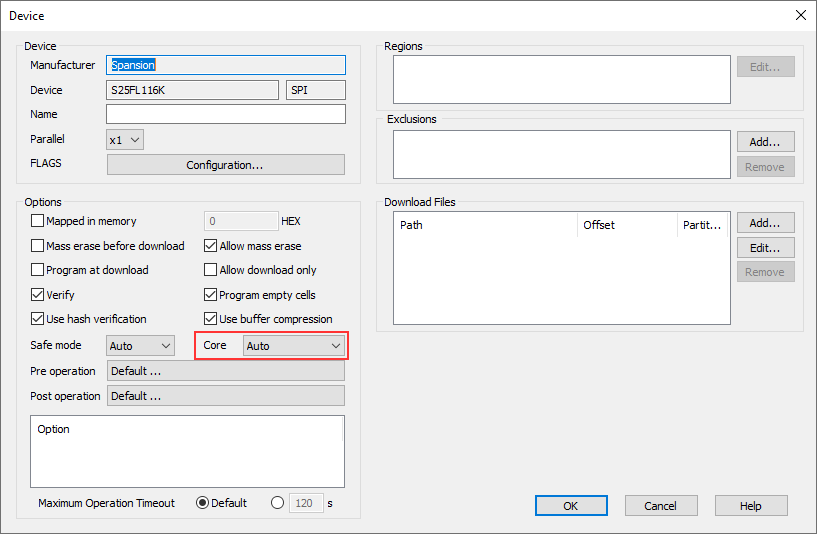

Core selection for Flash programming

Added a possibility to select a core for Flash programming selection to Hardware / <Device> / Configure.
