Release Notes

Hotfix build release notes





IDE

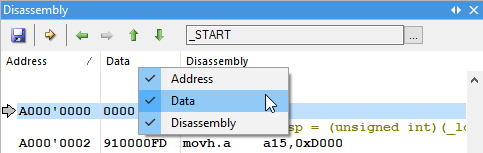

Displaying/ Hiding columns in winIDEA windows

Added an option to hide or display certain columns of tables and trees in winIDEA windows. To access this option right-click on a column header and check or uncheck different columns. This option applies to windows that contain tables and trees:

•Debug Windows

•Plugins

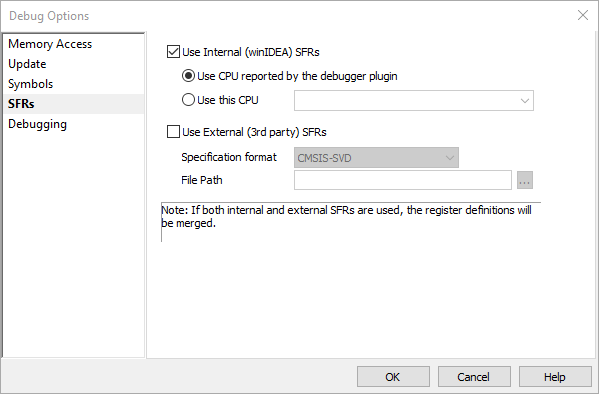

SFRs options

SFRs page removed from Debug menu / Debug Options.

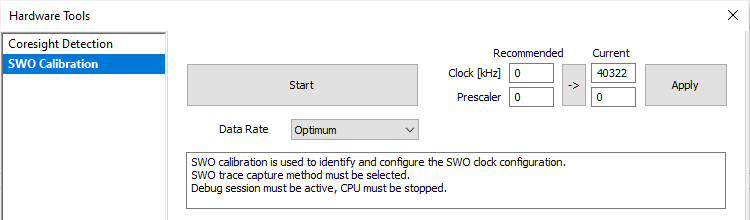

SWO Calibration

Identify and configure the SWO (Serial Wire Output) Clock via Hardware menu / Tools / SWO Calibration.

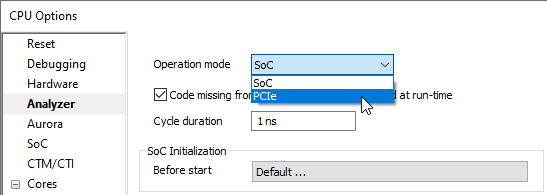

PCIe trace

In CPU Options / Analyzer window you can now choose PCIe as an operation mode. Choose it when you want to capture trace data output through PCIe (Peripheral Component Interconnect Express).
