9.21.363

In this topic:

New features

Changes to existing features

Newly supported devices

Known issues





Verified build release date: 28 Sep 2025

Full winIDEA version: 9.21.363.1.232514





New features

SCIOPTA Debug Support in winIDEA

winIDEA now includes dedicated support for the SCIOPTA Real-Time Kernel V2. Developers can inspect kernel objects through dedicated windows (Modules, Processes, Pools, Stacks, and Messages) and profile process execution directly in the Profiler.



For more information, refer to SCIOPTA winIDEA Help page.



winIDEA version: 9.21.360





Changes to existing features

Controlling colors and fonts

The Colors and Fonts dialog is refreshed to give you a smoother experience when adjusting the interface to your liking. winIDEA now supports a dark theme, giving you a modern look that’s easier on the eyes in low-light environments. You can adjust colors and fonts to match your preference for a more comfortable workspace.



For more information, refer to Colors and Fonts winIDEA Help page.

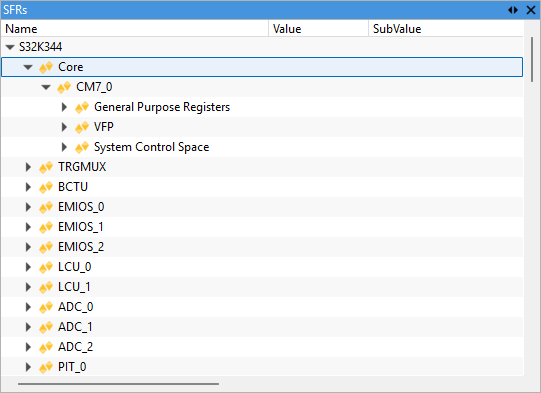

SFRs displayed for all cores

Special Function Registers (SFRs) are now displayed for all cores:

A new node Core is created.

Each core has its own child item, named accordingly.





SFR-window-cores





Newly supported devices

Texas Instruments

AWR2x44P

Extending support.



New variants:

AWR2944-ECO

AWR2E44-ECO

AWR2944LC

AWR2E44LC



winIDEA version: 9.21.364





AM62Px

Extending support for Trace:

Cortex-A53 ETM Parallel

Cortex-R5F ETM Parallel (WKUP)

Cortex-R5F ETM Parallel (MCU)

Cortex-A53 ETM STM

Cortex-R5F ETM STM (WKUP)

Cortex-R5F ETM STM (MCU)

Cortex-A53 ETM ETB

Cortex-R5F ETM ETB (WKUP)

Cortex-R5F ETM ETB (MCU)



winIDEA version: 9.21.361



NXP

MCX A343/4

Adding support for NXP MCX A343/4:



Features:

Debug: SWD, JTAG, 1x Cortex-M33

SFRs

UMI: Internal

Trace: DWT ITM SWO, ITM SWO



Variants:

MCXA343

MCXA344



winIDEA version: 9.21.364



GigaDevice

GD32A74x

Device is renamed. New variants are:

GD32A741AxxxxB

GD32A741BxxxxB

GD32A742AxxxxB

GD32A742BxxxxB

GD32A744AxxxxB

GD32A744BxxxxB



winIDEA version: 9.21.364



GD32A72x

Device is renamed. New variants are:

GD32A722AxxxxB

GD32A722BxxxxB

GD32A724AxxxxB

GD32A724BxxxxB



winIDEA version: 9.21.364





GD32A71x

Device is renamed. New variants are:

GD32A711AxxxxB

GD32A711BxxxxB

GD32A712AxxxxB

GD32A712BxxxxB

GD32A714BxxxxB



winIDEA version: 9.21.364





ST

STM32H7S3x8/7x8

Trace supported for:

ETM Parallel

DWT ETM Parallel

DWT ITM Parallel

DWT ITM SWO

ITM SWO

DWT ITM ETF

TITM ETF



winIDEA version: 9.21.361





SR6G7

Extending support for Debug:

Low power mode Stop and Stand-by in winIDEA version 9.21.361

10 x GTM4154 in winIDEA version 9.21.364





SR6G6 and SR6G7

Extending support for:

Debug: Low power mode Stop and Stand-by



winIDEA version: 9.21.361





Elmos Semiconductor

Adding support for Elmos E523.62.



winIDEA version: 9.21.359.0.228382





Infineon

TC4D

Extending support for DXCPL winIDEA version 9.21.364.





TLE994x/TLE995x

Adding support.



Supported features:

Debug: SWD, Cortex-M23

SFRs

UMI: Internal FLASH



Variants:

TLE9954

TLE9944



winIDEA version: 9.21.356.1.228133





Renesas

RA2A1

Adding support.



Supported features:

Debug: SWD, Cortex-M23

SFR

UMI: Internal

Trace: MTB



Variants:

R7FA2A1AB



winIDEA version: 9.21.357.0.228133





RA2L1

Adding support.



Supported features:

Debug: SWD, Cortex-M23

SFR

UMI: Internal

Trace: MTB



Variants:

R7FA2L1AB

R7FA2L1A9



winIDEA version: 9.21.357.0.228133





RH850/U2B

Extending support.



Variants:

R7F702540

R7F702541

R7F702542

R7F702543

R7F702544

R7F702545

R7F702546

R7F702547

R7F702548

R7F702549

R7F70254A

R7F70254B

R7F70254C

R7F70254D

R7F70254E

R7F70254F



winIDEA version: 9.21.359.0.228747





Yuntu

YTM32B1MD2x

Adding support for:

Debug: JTAG, SWD, Cortex-M33

SFR

UMI: Internal



Variants:

YTM32B1MD24



winIDEA version: 9.21.361





YTM32B1MD1x

Adding support for:

Debug: JTAG, SWD, Cortex-M33

SFR

UMI: Internal



Variants:

YTM32B1MD14



winIDEA version: 9.21.359.0.228567





Known issues

Refer to this page for more information.
