winIDEA Release Notes

In this topic:

•New features

•Newly supported devices

•Known issues





Verified build release date: 25 Jan 2026

Full winIDEA version: 9.21.390.1.247490





New features

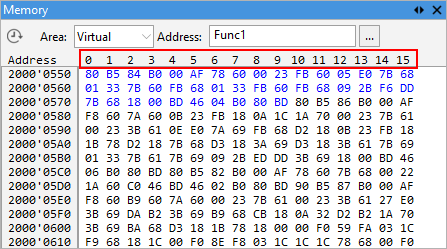

Address indicator at the top of the Memory Window

The Memory Window now shows the Address indicator at the top of the pane, making it easier to quickly identify memory locations while inspecting data.







Supported from winIDEA version: 9.21.389





Newly supported devices

Infineon

TC39x

With winIDEA 9.21.384 we are extending support for Infineon TC39x.



Variants:

•TC399QP

•TC399PX

•TC397XV

•TC397PX





Autochips

AC7870X

With winIDEA 9.21.387 we are adding support for Autochips AC7870X.



Features:

•Debug: JTAG, SWD, 2x Cortex-R52 (split, LS), 1x Cortex-R52 LS, multicore (core sync)

•SFR

•UMI: PFLASH, DFLASH

•Trace: ETM Parallel, ETM ETR



Variants:

•AC78704xL

•AC78704xM

•AC78704xP





Nuclei

NA900

With winIDEA 9.21.389 we are adding support for Nuclei NA900.



Features:

•Debug: JTAG, N900

•SFR





NXP

i.MX 8M Nano

With winIDEA 9.21.389 we are extending support for NXP i.MX 8M Nano.



Features:

•Trace: Cortex-A53 ETM ETF, Cortex-A53 ETM ETR, Cortex-A53 ETM Parallel





i.MX 95

With winIDEA 9.21.384 we are extending support for NXP i.MX 95



Features:

•Debug: Cortex-M7





MCX W23x

With winIDEA 9.21.392 we are adding support for NXP MCX W23x for:

•Debug: SWD, JTAG, 1x Cortex-M33

•SFRs

•UMI: Internal

•Trace: DWT ITM SWO,  ITM SWO



Variants:

•MCXW236

•MCXW235





Microchip

ATSAMD5x/ATSAME5x

With winIDEA 9.21.379 we are adding support for Microchip ATSAMD5x/ATSAME5x



Features:

•Debug: SWD, Cortex-M4

•SFR

•UMI: Internal



Variants:

•SAME51x20

•SAME51x19

•SAME51x18

•SAME53x20

•SAME53x19

•SAME53x18

•SAME54x20

•SAME54x19

•SAME54x18

•SAMD51x20

•SAMD51x19

•SAMD51x18





Texas Instruments

MSPM0C1105/6

With winIDEA 9.21.387 we are adding support for TI MSPM0C1105/6.



Features:

•Debug: SWD, Cortex-M0+

•SFRs

•UMI: Internal



Variants:

•MSPM0C1105

•MSPM0C1106

•MSP32G031C8

•MSP32G031C6

•MSP32C031C6





Tongxin

Micro THA64x

With winIDEA 9.21.390 we are extending support for Tongxin Micro THA64x for UMI: Cortex-R52 UCB.



THA61x

With winIDEA 9.21.384 we are adding support for Tongxin Micro THA61x for:



•Trace: Cortex-R52 ETM ETB.

•UMI: Cortex-R52 PFLASH, UMI: Cortex-R52 DFLASH







ST

SR6P3E

With winIDEA 9.21.389 we are adding support for ST SR6P3E

•Debug: JTAG, SWD, 4x Cortex-R52 (3x lockstep or 2x lockstep and 2x split), DSPH (Cortex-M4), HSM (Cortex-M4), GTM4134 (5x MCS), multicore (core sync)

•SFR

•UMI: Cortex-R52 RAM Init, Cortex-R52 Internal, HSM Internal





NXP

i.MX 95

With winIDEA version 9.21.382 we are adding support for NXP i.MX 95.



•Debug: JTAG. SWD, 6x Cortex-A55,  multicore

•SFR



Variants:

•MIMX95x6

•MIMX95x4

•MIMX95x2





ChinaCore

CCFC3010PT

With winIDEA 9.21.382 we are adding support for ChinaCore CCFC3010PT.



•Debug: JTAG, 2x C3007(lockstep) + 1x C3007, C2002 (HSM), multicore (core sync)

•SFR

•UMI: CFLASH, DFLASH



Variants:

•CCFC3010PTT96B2

•CCFC3010PTT128B2





Known issues

Refer to this winIDEA public issues for more information.
