9.21.46
Hotfix build release date: 23 December 2021
Full winIDEA version: 9.21.46.0.129245
IDE
SCR debugging via Private DAP

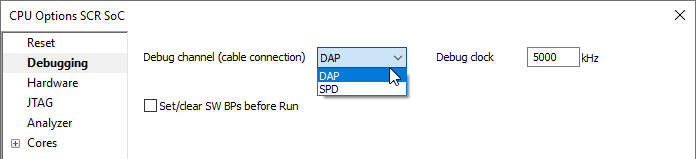

iC5700 BlueBox and Active Probe Infineon now supports SCR debugging via Private DAP (standard DAP or SPD). In the Hardware menu / CPU Options / Debugging page select SCR debug interface when private DAP is in use.
Cortex-M Fault Reports
Plugin refreshed. It can be controlled via isystem.connect SDKs.
NXP/ST Power Architecture FLASH options migration
For certain NXP/ST Power Architecture devices the following options were moved (and renamed) from Hardware / CPU Options / SoC to flash configuration dialogs.

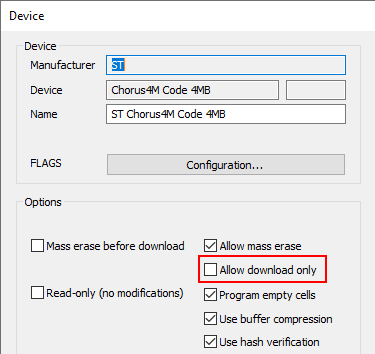

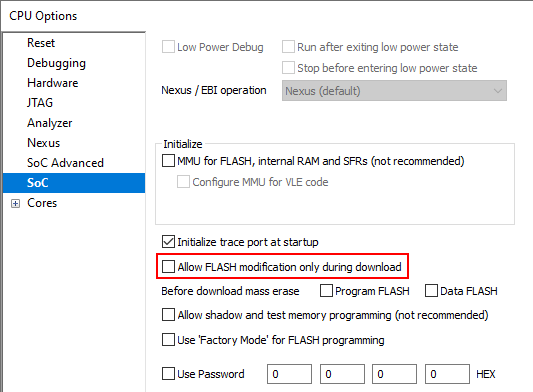

•Allow FLASH modification only during download renamed to Allow download only.
Currently Hardware / <FLASH> / Configure |
Previously Hardware / CPU Options / Soc |
|
|

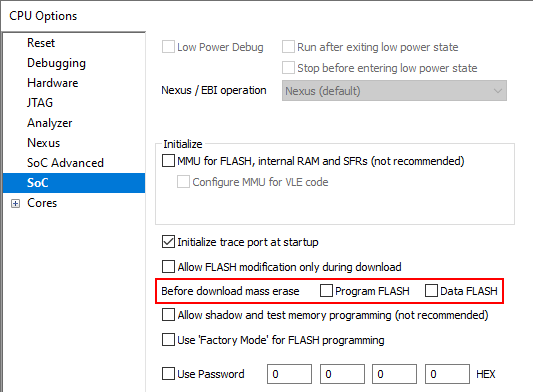

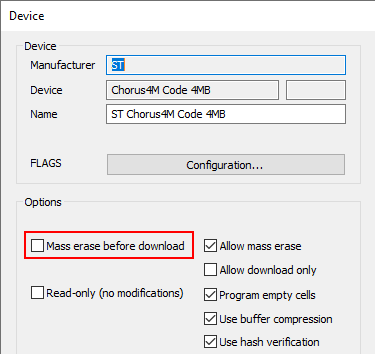

•Before download mass erase: Program FLASH / Data FLASH renamed to Mass erase before download.
Currently Hardware / <FLASH> / Configure |
Previously Hardware / CPU Options... / Soc |
|
|

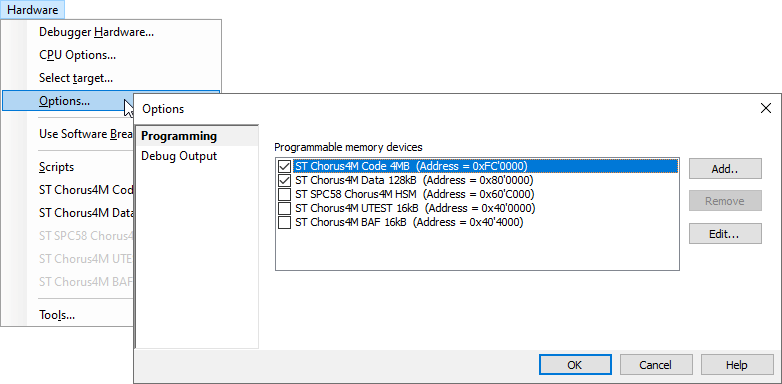

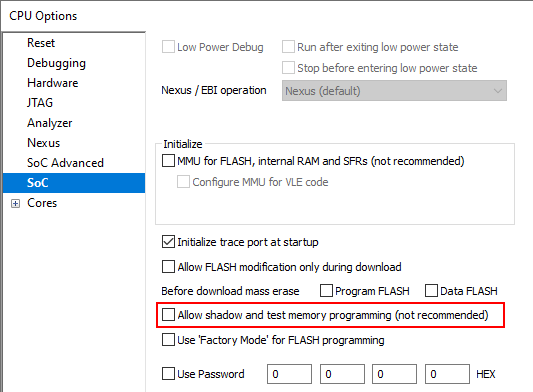

•Allow shadow and test memory programming (not recommended) moved to Hardware / Options / Programming dialog.
Currently Hardware / Options / Programming |
Previously Hardware / CPU Options / SoC |
|
|

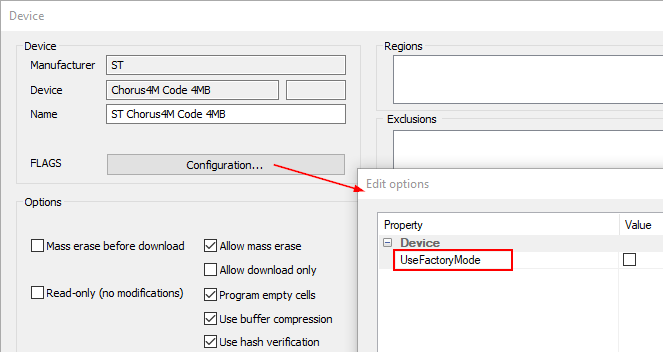

•Use 'Factory Mode' for FLASH programming renamed to UseFactorMode.
Currently Hardware / <FLASH> / Configure / FLAGS Configuration |
Previously Hardware / CPU Options... / Soc |
|
|
Newly supported devices
Infineon
TLE988x and TLE989x - Added support for:
•Debug: SWD, CM3
•SFRs
•UMI: Internal FLASH
Devices: TLE9891, TLE9893, TLE9881, TLE9883
Atmel
ATSAMA5D2x - Added support for:
•Debug: JTAG, SWD, A5
•SFR
NXP
•S32K314
•S32K341
