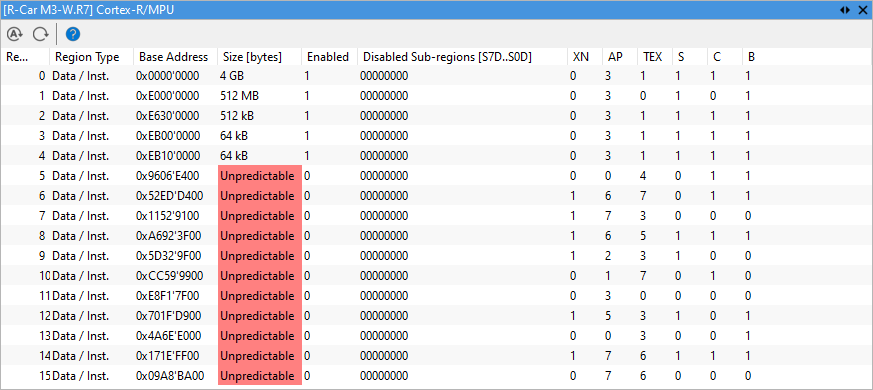

The Cortex-R MPU is a core plugin and it is used to view the number of Cortex-R MPU regions, with the location address, size, access permissions, and memory attributes of each region.
|
For a correct configuration of the MPU refer to the ARM manual. |
The plugin can be loaded by selecting View / [<device>.COREn].Cortex-R / MPU. Information is displayed when a debug connection is established.
Toolbar
Icon |
Description |
|---|---|
 |
Enable automatic update indicated by a [Rt] in the plugin title, e.g. CORE0.Cortex-R MPU[Rt] |
 |
Manually update the window |
 |
Go to winIDEA Help |
Context menu
Right-click in the plugin window to open the context menu.
Copy Python access snippet - Copy SDK code snippet to extract the content from the plugin window.
Auto Fit - Arrange all the columns to fit in the plugin window.
Options - Set colors and fonts.
Help - Open winIDEA Help.
|
To display or hide columns, right-click on a column header and select what you want to see. |
