How to create a winIDEA workspace programmatically in Python

In this topic:

Create a Python script

Create a Workspace with Basic Debug Configuration

Set advanced configuration

Create an advanced Python configuration from an existing workspace

Finalize the Python script





Introduction

To control an SoC, winIDEA needs to know about the exact device, which files to program into FLASH, which files to use for debugging, etc. This configuration is typically done manually in an interactive session using winIDEA configuration dialogs.

In an automated test environment (CI/CD) the configuration may need to be created programmatically.





Requirements

winIDEA 9.21.283 or newer

Python SDK 9.21.283 or newer





Configuration steps

Create a Python script

number1

Use your preferred Python IDE to create a new Python script.



number2

Import winIDEA SDK.



number3

Create a function that will create the workspace.

import isystem.connect as ic

def create_ws(path_WS):
  """
  Create workspace, additionally configure applications, symbol and program files
  """
  cmgr = ic.ConnectionMgr()
  # open and connect to winIDEA, no WS open
  cmgr.connect()
  ws_ctrl = ic.CWorkspaceController(cmgr)





Create a Workspace with Basic Debug Configuration

number1

Create a CCfg_debug_basic object and use its functions to specify your SoC configuration.



number2

Create the Workspace.

# create basic debug configuration
  cfg = ic.CCfg_debug_basic()
  cfg.set_Device('TC399XE')
  cfg.set_SymPath('bin/output.elf')
  cfg.set_UseSymForPgm(True) # use same file also for FLASH program
  cfg.set_CreateSMP(True)   # bind all cores into SMP configuration

  # create WS, use 'HASYST' iOpen - this selects TASKING debug tools
  ws_ctrl.create(path_WS, 'HASYST', cfg)





Set advanced configuration

Use CConfigurationController to access the winIDEA configuration. For frequently used configurations the CConfigurationController provides convenient accessor functions.



# to adjust additional configuration, use the CConfigurationController
cfg_ctrl = ic.CConfigurationController(cmgr)
opt_session = cfg_ctrl.ide_session() # debug session configuration node


# add another program file  to default SoC
opt_SoC = opt_session.SoC('') # empty string selects the default SoC
opt_SoC.program_files().add_file('bin/output3.bin', 'bin', 0)


# add another symbol file to the default Application
opt_app_files = cfg_ctrl.ide_app_files(''); # empty string selects the default Application
opt_app_files.add_file('bin/output2.elf', 'Elf', 0)


# add another application for the SCR core and assign it a symbol file
opt_app = opt_session.add_app('SleepCtrl')
opt_app.symbol_files().add_file('bin/output23.elf', 'Elf', 0)


# add a memory space for the HSM core and assign it the SleepCtrl application
opt_SoC.add_memory_space('SCR', 'SCR', 'SleepCtrl')

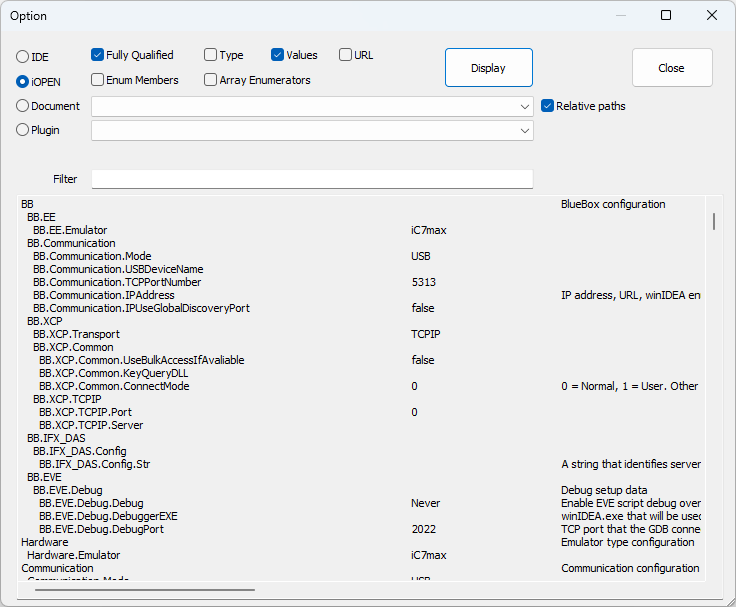

For finer configuration use, go to Help | Display Option in winIDEA to identify the configuration URL.



Help-DisplayOptions



optBB = ic.COptionController(cmgr, '/iOPEN/BB')
optBB.set('EE.Emulator', 'iC7max')
optBB.set('Communication.Mode', 'USB')





Create an advanced Python configuration from an existing workspace

If you have manually prepared a working Workspace configuration using winIDEA and want to extract the CPU configuration directly into a Python snippet, select Hardware | Diff Config to Clipboard | Python/SDK and paste into your Python file.



# adjust advanced CPU configuration, located under '/iOPEN/Emulation.Debugging' configuration URL
optCPU = ic.COptionController(cmgr, '/iOPEN/Emulation.Debugging')
optCPU.set('Emulation.Debugging.ResetDuration','100')
optCPU.set('Emulation.OCD_TRICORE.DAPClock','110000')





Finalize the Python script

Adjust the script with anything specific to your use case, like saving the workspace as a test artifact.



def create_ws(path_WS):
  """
  Create workspace, additionally configure applications, symbol and program files
  """
  cmgr = ic.ConnectionMgr()
  # open and connect to winIDEA, no WS open
  cmgr.connect()
  ws_ctrl = ic.CWorkspaceController(cmgr)


  # create basic debug configuration
  cfg = ic.CCfg_debug_basic()
  cfg.set_Device('TC399XE')
  cfg.set_SymPath('bin/output.elf')
  cfg.set_UseSymForPgm(True) # use same file also for FLASH program
  cfg.set_CreateSMP(True)   # bind all cores into SMP configuration


  # create WS, use 'HASYST' iOpen - this selects TASKING debug tools
  ws_ctrl.create(path_WS, 'HASYST', cfg)


  # to adjust additional configuration, use the CConfigurationController
  cfg_ctrl = ic.CConfigurationController(cmgr)
  opt_session = cfg_ctrl.ide_session() # debug session configuration node


  # add another program file to default SoC
  opt_SoC = opt_session.SoC('') # empty string selects the default SoC
  opt_SoC.program_files().add_file('bin/output3.bin', 'bin', 0)


  # add another symbol file to the default Application
  opt_app_files = cfg_ctrl.ide_app_files(''); # empty string selects the default Application
  opt_app_files.add_file('bin/output2.elf', 'Elf', 0)


  # add another application for the SCR core and assign it a symbol file
  opt_app = opt_session.add_app('SleepCtrl')
  opt_app.symbol_files().add_file('bin/output23.elf', 'Elf', 0)


  # add a memory space for the HSM core and assign it the SleepCtrl application
  opt_SoC.add_memory_space('SCR', 'SCR', 'SleepCtrl')


  optBB = ic.COptionController(cmgr, '/iOPEN/BB')
  optBB.set('EE.Emulator', 'iC7max')
  optBB.set('Communication.Mode', 'USB')


  # adjust advanced CPU configuration, located under '/iOPEN/Emulation.Debugging' configuration URL
  optCPU = ic.COptionController(cmgr, '/iOPEN/Emulation.Debugging')
  optCPU.set('Emulation.Debugging.ResetDuration','100')
  optCPU.set('Emulation.OCD_TRICORE.DAPClock','110000')
