Configuration

This chapter describes how to configure which columns are displayed in the Trace window.

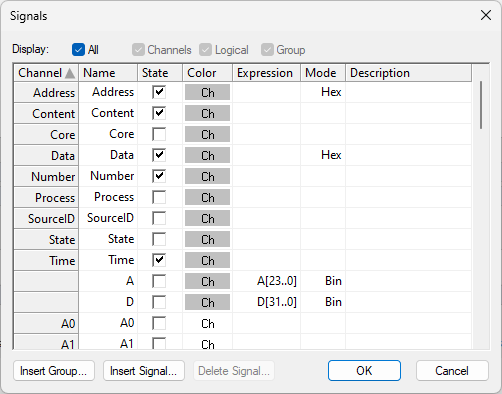

The columns can be configured by selecting the Configure Signals TraceView-ConfigureSignalsButton button in the Trace window toolbar.  Dialog Signals allows you to configure which columns are displayed in the Trace window.



TraceView-ConfigureSignalsDialog

For example, if you are recording trace from multiple sources (e.g. on multicore MCUs) you can enable the SourceID channel  in the State column to see which core the trace data belongs to.

Columns Address, Content, Data, Number and Time are enabled by default.

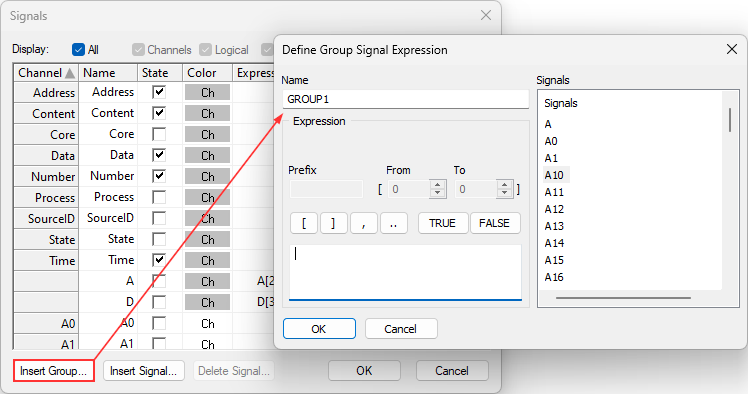

Define Group Signal Expression

TraceDefineGroup

1.Click Configure Signal button TraceView-ConfigureSignalsButton .

2.Select Insert Group button to insert e.g. GROUP1.

3.Configure Expressions by:

oTyping in the Expression field.

oSelecting operators (NOT, OR, AND, EQU etc) and Signals.

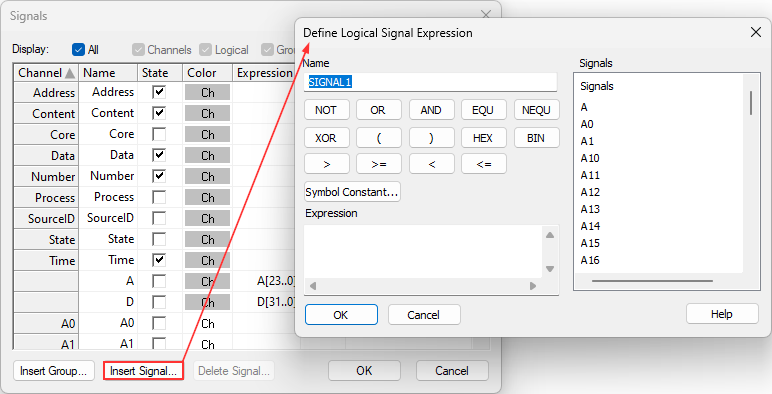

Define Logical Signal Expression

TraceDEfineSignal

1.Click Configure Signal button TraceView-ConfigureSignalsButton .

2.Select Insert Signal button to insert e.g. SIGNAL1.

3.Configure Expressions by:

oTyping in the Expression field

oSelecting operators (TRUE, FALSE etc) and Signals.
