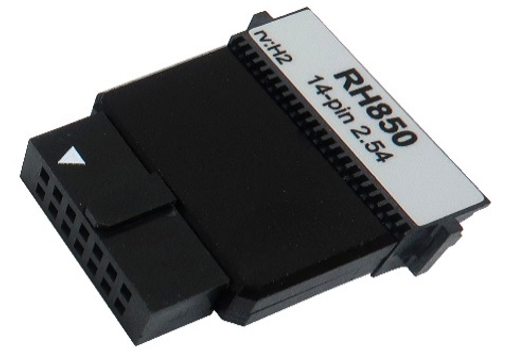

14-pin Renesas RH850 (2.54mm) Debug Adapter
|
This debug adapter is used to connect the BlueBox to Renesas RH850 based target featuring a 14-pin 2.54 mm pitch target debug connector with the RH850 pinout.
The debug adapter connects to the 25 cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side.
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
O |
Debug Clock |
LPDCLK/TCK |
1 |
2 |
GND |
Ground |
|
O |
JTAG |
nTRST |
3 |
4 |
FLMD0 |
Flash Mode |
O |
I |
Trace / Debug Signal |
LPDO/TDO |
5 |
6 |
NC |
Not Connected |
|
O |
Debug Signal |
LPDI/TDI |
7 |
8 |
Vref |
Reference Voltage |
I |
O |
JTAG |
TMS |
9 |
10 |
NC |
Not Connected |
|
I |
Trace Clock / Debug Clock / Synchronization |
LPDCLKOUT |
11 |
12 |
GND |
Ground |
|
I/O |
Reset |
nRESET |
13 |
14 |
GND |
Ground |
|
14-pin RH850 pinout
Signal Direction is described from the BlueBox perspective.
|
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
14-pin 2.54mm RH850 Debug Adapter features resettable fuses on all pins except for pin 11. These fuses protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades away.
A signal on pin 11 is protected via 22 ohm serial resistor.
The debug adapter connects to the target via a 14-pin 2.54 mm connector, Yamaichi FAS-1401-2101-2-OBF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61201421621.
|
Make sure this adapter fits on your target connector - check Cross Table. |
|
Refer to Hardware Setup and Configuration Tutorial to get more information on how to connect the hardware. |
