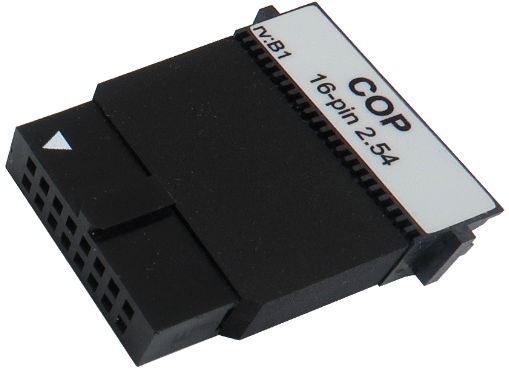

16-pin 2.54mm NXP COP



Click to expand







Ordering code

IC50153

This debug adapter is used to connect the iC5000 BlueBox to NXP MPC6xx, MPC82xx, MobileGT, MPC7xx or MPC83xx based target featuring 16-pin 2.54mm pitch target debug connector with NXP COP pinout



Warning_orange

This debug adapter is supported by the iC5000 BlueBox only.



The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. Refer to the BlueBox User Manual for more details on connecting the debug adapter.



The following pinout is valid on the target side:

Signal direction

Signal

Pin

Pin

Signal

Signal direction

I

TDO

1

2

QACK#

O

O

TDI

3

4

TRST

O

I

HALTED

5

6

VTref

I

O

TCK

7

8

CKSTP_IN

O

O

TMS

9

10

NC



O

SRESET

11

12

GND



O

HRESET

13

14

NC



I

CKSTP_OUT

15

16

GND



16-pin COP target pinout



Signal Direction is described from the BlueBox perspective.



Warning_orange

When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure.



16-pin 2.54mm NXP COP Debug Adapter features resettable fuses on all pins except for the pin 15. These protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades away. The signal on the pin 15 is protected via 100 ohm serial resistor.



The debug adapter connects to the target via a 16-pin 2.54 mm connector, for example Yamaichi FAS-1601-2101-2-OBF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61201621621.
