6-pin 2.54mm NXP S12Z BDM
|

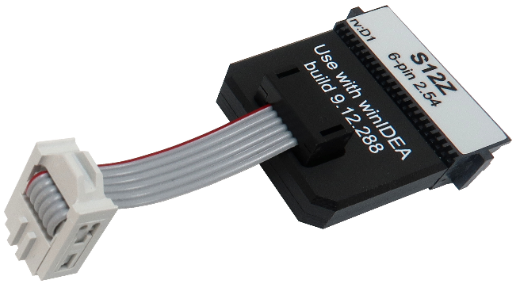

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP S12Z based target featuring 6-pin 2.54mm pitch target debug connector with the S12Z BDM pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. Refer to the BlueBox User Manual for more details on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction |
Signal |
Pin |
Pin |
Signal |
Signal direction |
|---|---|---|---|---|---|
I/O |
BGND |
1 |
2 |
GND |
|
I |
PDO |
3 |
4 |
RESET |
I/O |
I |
PDOCLK |
5 |
6 |
VTref |
I |
6-pin S12Z BDM pinout
Signal Direction is described from the BlueBox perspective.
|
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
