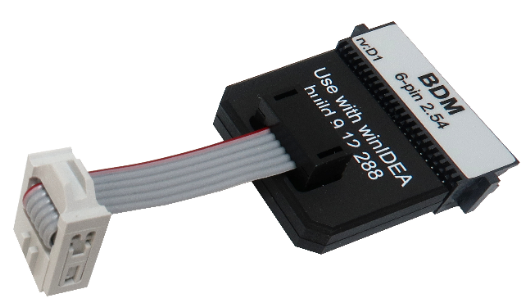

6-pin 2.54mm NXP BDM
|
This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP HCS08, HC12, HCS12, S12X and ColdFire V1 based target featuring 6-pin 2.54mm pitch target debug connector with the BDM pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. Refer to the BlueBox User Manual for more details on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction |
Signal |
Pin |
Pin |
Signal |
Signal direction |
|---|---|---|---|---|---|
I/O |
BGND |
1 |
2 |
GND |
|
|
NC |
3 |
4 |
RESET |
I/O |
|
NC |
5 |
6 |
VTref |
I |
6-pin BDM pinout
Signal Direction is described from the BlueBox perspective.
|
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
6-pin 2.54mm NXP BDM Debug Adapter features resettable fuses on pins 1, 2, 4 and 6. These fuses protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades away.
The debug adapter connects to the target via a 6-pin 2.54 mm connector, for example FCI 71600-006LF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61200621621.
