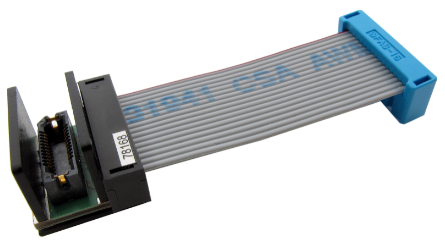

16-pin 2.54 mm JTAG Adapter
|
This adapter must be ordered separately to connect to the target featuring 16-pin 2.54 mm pitch JTAG target debug connector. The adapter is used only in conjunction with TASKING solutions supporting Infineon AGBT trace interface (e.g. Infineon AGBT Active Probe ).
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
|---|---|---|---|---|---|---|---|
O / IO |
JTAG / DAP Data pin |
TMS/DAP1 |
1 |
2 |
Vref |
Reference Voltage |
I |
I |
JTAG |
TDO |
3 |
4 |
GND |
Ground |
|
|
Not Connected |
NC |
5 |
6 |
GND |
Ground |
|
O |
JTAG |
TDI |
7 |
8 |
nPORESET |
Power On Reset |
IO |
O |
JTAG |
nTRST |
9 |
10 |
NC |
Not Connected |
|
O / O |
JTAG / DAP Clock |
TCK/DAP0 |
11 |
12 |
GND |
Ground |
|
|
Not Connected |
NC |
13 |
14 |
NC |
Not Connected |
|
|
Not Connected |
NC |
15 |
16 |
NC |
Not Connected |
|
16-pin 2.54 mm TriCore JTAG pinout
Signal Direction is described from the BlueBox perspective.
