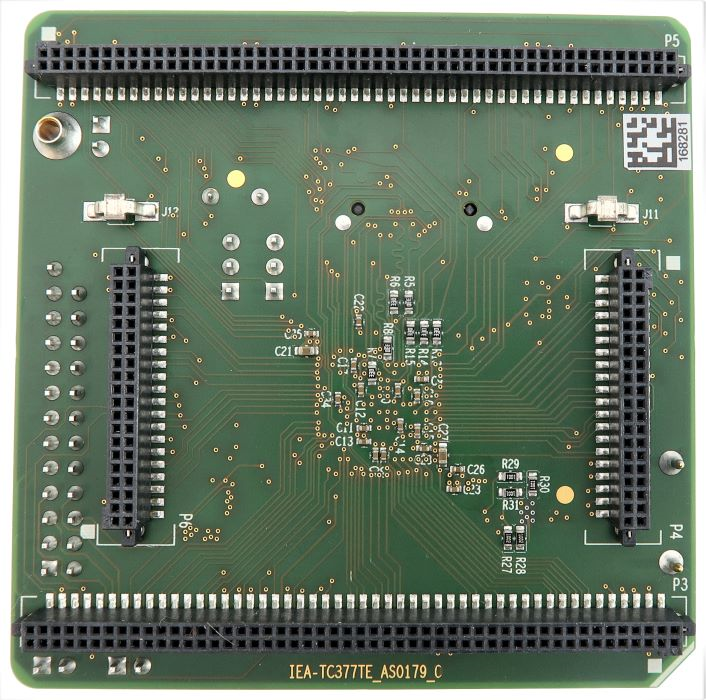

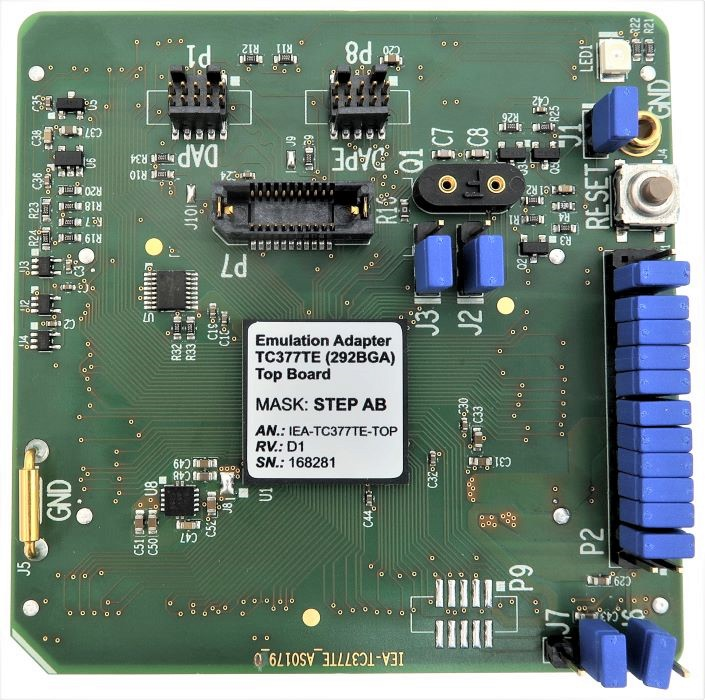

Infineon TC377TE Emulation Adapter V1.9



Infineon TC377TE Emulation Adapter provides full trace capabilities for the:

TC332

TC323, TC333

TC324, TC334

TC364

TC365

TC375

TC327LP, TC337LP, TC367DP, TC377TP (BGA)



devices where trace port is not available or lacks the full trace capability.



Infineon TC377TE Emulation Adapter supports following debug and trace interfaces:

DAP

DAPE

AGBT (Aurora Gigabit Trace)



The Emulation Adapter can be used as a standalone device for microcontroller evaluation purposes or for development and test of an embedded application before the target board is available.



iSYSTEM Debug and Trace solutions

Trace provides a non-intrusive and deep insight in the embedded application without influencing real-time behavior. It can be used to debug the most difficult and complex code defects and offers a complete trace history capture of the program execution.



iSYSTEM BlueBox On-Chip Analyzer combined with the:

Infineon AGBT Active Probe or

Infineon DAP/DAPE Active Probe or

10-pin 1.27mm Infineon DAP2 Wide Debug Adapter or

22-pin ERF8 DAP2 Debug Adapter or

10-pin 1.27 mm DAP Adapter via Infineon AGBT Active Probe

provides high-speed connection to the target device using a variety of debug/trace interfaces.



Furthermore, IOM6 accessories enable the synchronous capture of analog and digital signals in parallel to trace information. Hardware tools coupled with iSYSTEM winIDEA IDE enable reliable recording of program flow and data trace. Integrated measurement and visualization tool Analyzer provides graphical presentation of execution time analysis and much more.
