Options
The Emulation Adapter adaptation to a specific target microcontroller pincount and package is done via a Conversion board and a Solder part. Sometimes also an optional Extender and Socket cover are available. Conversion boards connect between the Emulation Adapter and the matching Solder part, which is being soldered on the embedded target side.
Package (Pitch) |
MCU |
Conversion board (Ordering code) |
Type |
Connecting part (Ordering code) |
Extender (Ordering code) |
Solder part (Ordering code) |
Socket cover (Ordering code) |
|---|---|---|---|---|---|---|---|
QFP80 (0.4 mm) |
TC332 |
IEA-TC377TE-TC332W |
Flex Wire |
IAYQPACK80SE |
/ |
IANQPACK80SE |
IAHQPACK80SE |
QFP100 (0.4 mm) |
TC323, TC333 |
IEA-TC377TE-BTQ100W |
Flex Wire |
IAYQPACK100SE |
IANQPACK100SE |
IAHQPACK100SE |
|
QFP144 (0.4 mm) |
TC324, TC334 |
IEA-TC377TE-TC334W |
Flex Wire |
IAYQPACK144SE |
IANQPACK144SE |
IAHQPACK144SE |
|
TC364 |
IEA-TC377TE-TC364W4 |
Flex Wire |
IAYQPACK144SE |
||||
QFP144 (0.5 mm) |
TC364 |
IEA-TC377TE-TC364W5 |
Flex Wire |
/ |
IA144TQ-SOLDER |
/ |
|
TC364 |
IEA-TC377TE-TC364F5 |
Fixed |
|||||
QFP176 (0.5 mm) |
TC365 |
IEA-TC377TE-TC365F5 |
Fixed |
IA176TQ-SOLDER |
|||
TC365 |
IEA-TC377TE-TC365W5 |
Flex Wire |
|||||
TC375 |
EA-TC377TE-TC375W5 |
Flex Wire |
|||||
TC375 |
IEA-TC377TE-TC375F5 |
Fixed |
|||||
TC375 |
IEA-TC377TE-TC375FP5 |
Flex PCB |
|||||
BGA292 |
TC327, TC337, TC367, TC377 |
IEA-TC377TE-TC377 |
BGA |
IA292LFBGA-EXTENDER |
IA292LFBGA-SOLDER |
The embedded system can behave differently when running the user application on the Emulation Adapter and when running it on a final mass production device without the hardware debugger attached. An optional Socket cover makes testing this possible. The Emulation Adapter connects to the target through the Solder part being soldered on the Target instead of the original microcontroller. With the use of the Socket cover, the same Target setup can be tested with a mass production device. Disconnect the Emulation Adapter and put a mass production device into the Solder part (IANQPACK…) and cover it with the Socket cover (IAHQPACK…), which must be tightened with the provided screws.
|
The Socket cover is not available with all target adaptations. |
QFP Fixed adaptation
The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part.
Conversion board |
Solder part |
|---|---|
|
|
QFP Flex adaptation – Wire adapter
As an alternative to the fixed connection, this adaptation provides a flexible connection of the Conversion board to the Solder part via a Connecting part.
IANQPACKxxx Solder part |
|||
|---|---|---|---|
Conversion board |
Connecting part |
Solder part |
Socket cover (optional) |
|
|
|
|
|
|
|
|

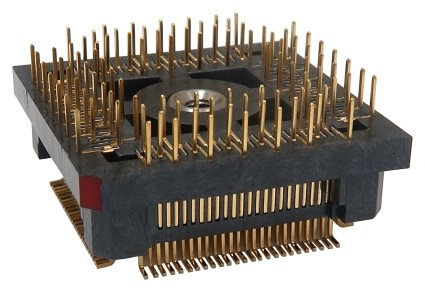

IAxxxTQ-SOLDER Solder part |
|||
Conversion board |
Solder part |
|
|
|
|
|
|

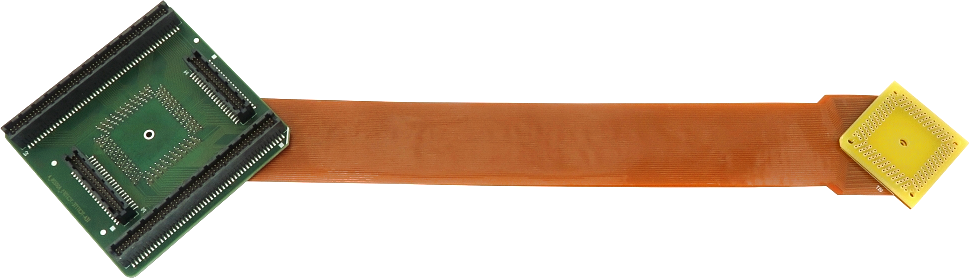

QFP Flex adaptation – Flex PCB adapter
This part provides a flexible connection of the Emulation Adapter to the Solder part as an alternative to the fixed connection.
Flex PCB adapter |
Solder part |
|---|---|
|
|
BGA adaptation
Conversion board |
Extender (optional) |
Solder part |
|---|---|---|
|
|
|
The Measurement board connects between the Emulation Adapter and the Conversion board. Embedded targets often do not have access to all the MCU pins / connected signals to connect with measurement equipment (oscilloscope, logic analyzer), its use provides easy access to all MCU pins. It is delivered together with an Layout board (chip signals are clearly marked), which is placed over the Measurement board.
Measurement board |
Layout board example for the Measurement board |
|---|---|
Ordering code: IAMTC377TE |
|
|
|
|
Not available in every Emulation Adapter or every MCU pin count. |
See below table for available pin count layout boards:
Target board |
Pin number |
Pin count layout board |
|---|---|---|
TC332 (0.4 pitch) |
80 |
TC331 TQFP-80 |
TC323, TC333 (0.4 pitch) |
100 |
TC333 TQFP-100 |
TC324, TC334 (0.4 pitch) |
144 |
TC334 TQFP-144 |
TC364 (0.4 pitch) |
144 |
TC364 TQFP-144 |
TC364 (0.5 pitch) |
144 |
TC364 LQFP-144 |
TC365 (0.5 pitch) |
176 |
TC365 LQFP-176 |
TC375 (0.5 pitch) |
176 |
TC375 LQFP-176 |
