9.17.153.0.103889 (06.05.2020)
Hotfix build release notes
ARM Cortex
1. NXP i.MX RT1170 device family: Added debug support (CM7 core, multicore CM4).
2. Cypress Traveo II: Cross trigger signals added to JSON.
CTI/CTM Cross trigger and flushing is enabled by:

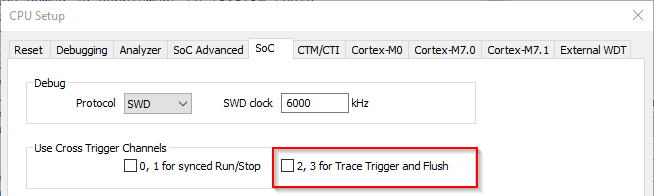

A1: Check 2,3 for Trace Trigger and Flush option in Hardware menu / CPU Options / SoC tab
A2: ETM Trigger must be configured.

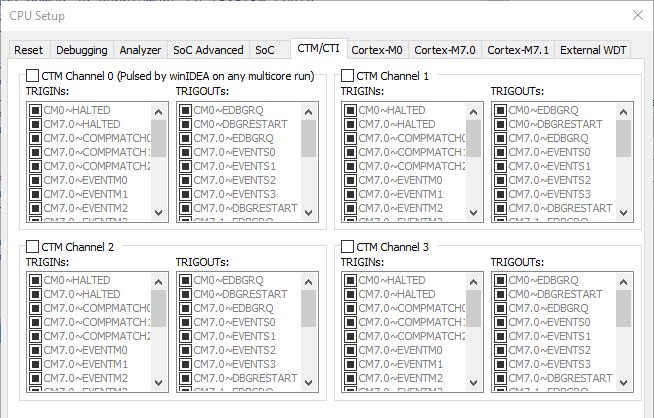

B1: Manual CTI/CTM configuration must be set in Hardware menu / CPU Options / CTI/CTM tab
B2: DWT comparator signal COMPMATCH can be used and connected directly via CTI matrix to TPIU_TRIGIN.
3. AWR1843: Added debug and trace (ETB) support.
Renesas RH850

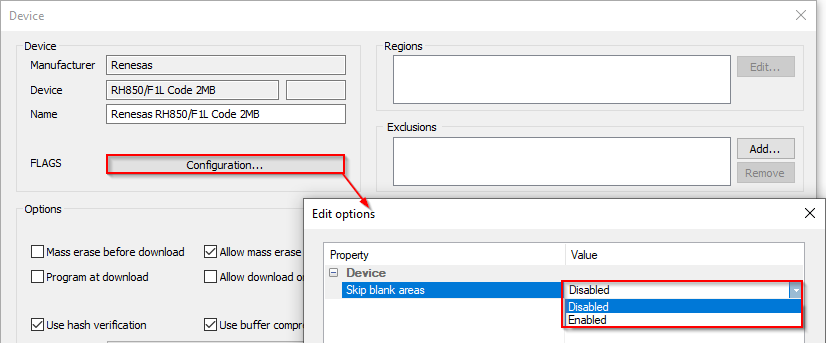

1. Internal FLASH programming: Skip blank areas feature is now configurable. It prevents blank blocks from being programmed. Affected CPUs: C1x, D1M, E1x, F1H, F1K, F1Kx, F1L, P1x and R1L
Open Hardware menu / <device> / FLAGS Configuration. Option is displayed after Download.
2. Internal FLASH programming: Option Disable lockbits in Hardware menu / <device> / FLAGS Configuration deprecated. Lockbits are disabled on monitor initialization and restored with the next CPU reset.
3. Renesas RH850: Software breakpoints support deprecated.
