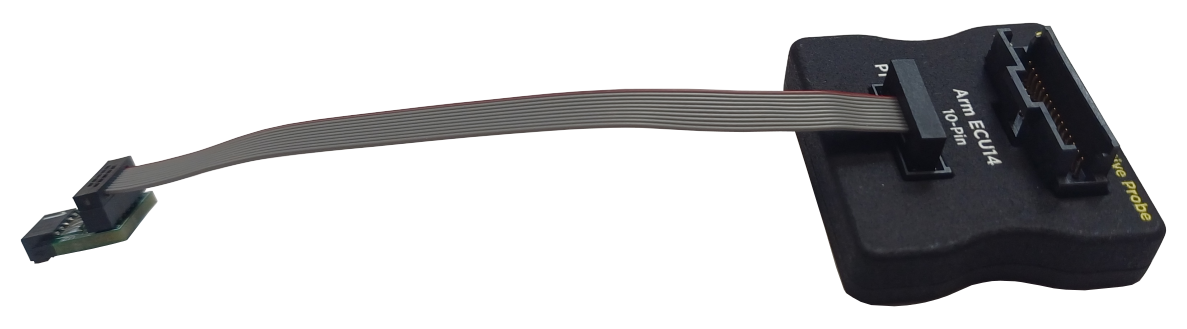

Arm ECU14 10-pin (1.27mm) Adapter
|
The Arm ECU14 10-pin Adapter is used to connect to iC7mini, iC7pro, Active Probe Debug or Active Probe Parallel on one side, while connecting to the embedded target on the other side. This adapter is equipped with a 10-pin ECU14 connector, guaranteeing compatibility with a diverse range of Arm Cortex-A, Cortex-R, and Cortex-M microcontroller families.
Requirements
•Hardware: iC7mini BlueBox / iC7pro BlueBox / Active Probe Debug / Active Probe Parallel
•Microcontroller Architecture: Arm Cortex-A/R/M
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
|---|---|---|---|---|---|---|---|
|
Ground |
GND |
1 |
2 |
TCK |
JTAG |
O |
O |
JTAG |
nTRST |
3 |
4 |
TDO |
JTAG |
I |
O |
JTAG |
TMS |
5 |
6 |
TDI |
JTAG |
O |
IO |
User specific |
USERIO |
7 |
8 |
Vref |
Reference Voltage |
I |
|
Not Connected |
NC |
9 |
10 |
nRESET |
Reset |
O |
10-pin Bosch ECU14 target pinout
Signal Direction is described from the BlueBox perspective.
|
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
|
Make sure this adapter fits on your Target connector. |
|
Refer to Hardware Setup and Configuration Tutorial for more information on how to connect the hardware. |
